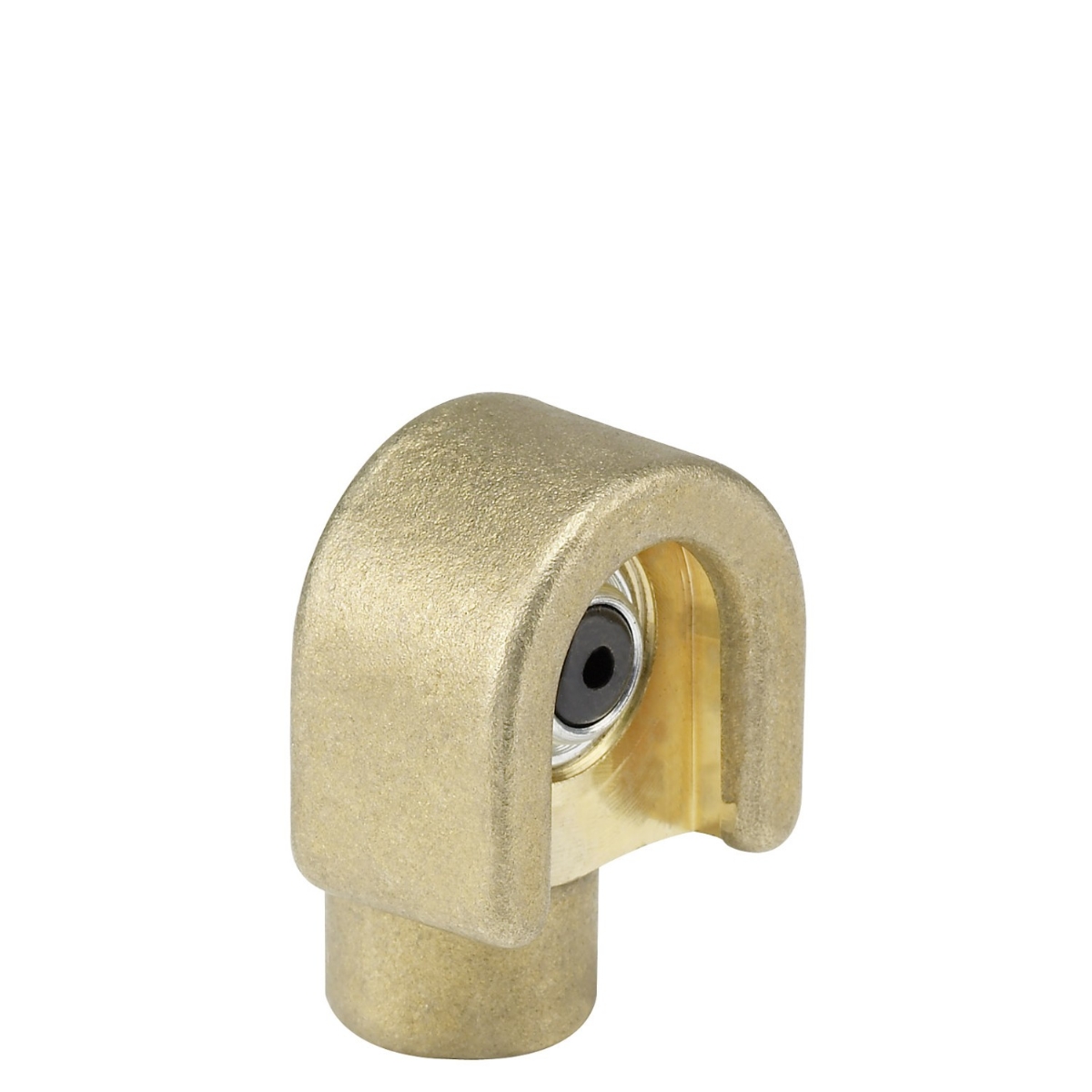

Pressol Button Head Coupler – G 1/8" Female, 22 mm (Item No: 12 063 125)
Designed for professional lubrication systems, the Pressol button head grease coupler ensures a perfect, leak-free connection with industrial-type button head grease nipples. Engineered with a high-strength forged brass body, it delivers long-lasting performance even under demanding workshop and factory conditions.
Technical Specifications
- Item Number: 12 063 125
- Connection 1 (Nipple Side): Sliding coupler for button head grease nipples, head Ø 22 mm (0.86"), DIN 3404 standard.
- Connection 2 (Pump Side): G 1/8" Female thread.
- Material: Premium forged brass (NFA 51-105 standard).
- Dimensions (LxWxH): 301 x 27 x 20 mm.
- Weight: 0.044 kg.
- High-Strength Construction: Features a basic body manufactured from high-strength forged brass material for superior pressure and impact resistance.
- Secure Connection: Fits DIN 3404 standard 16 mm button heads perfectly, preventing grease bypass and leaks during high-pressure lubrication cycles.
