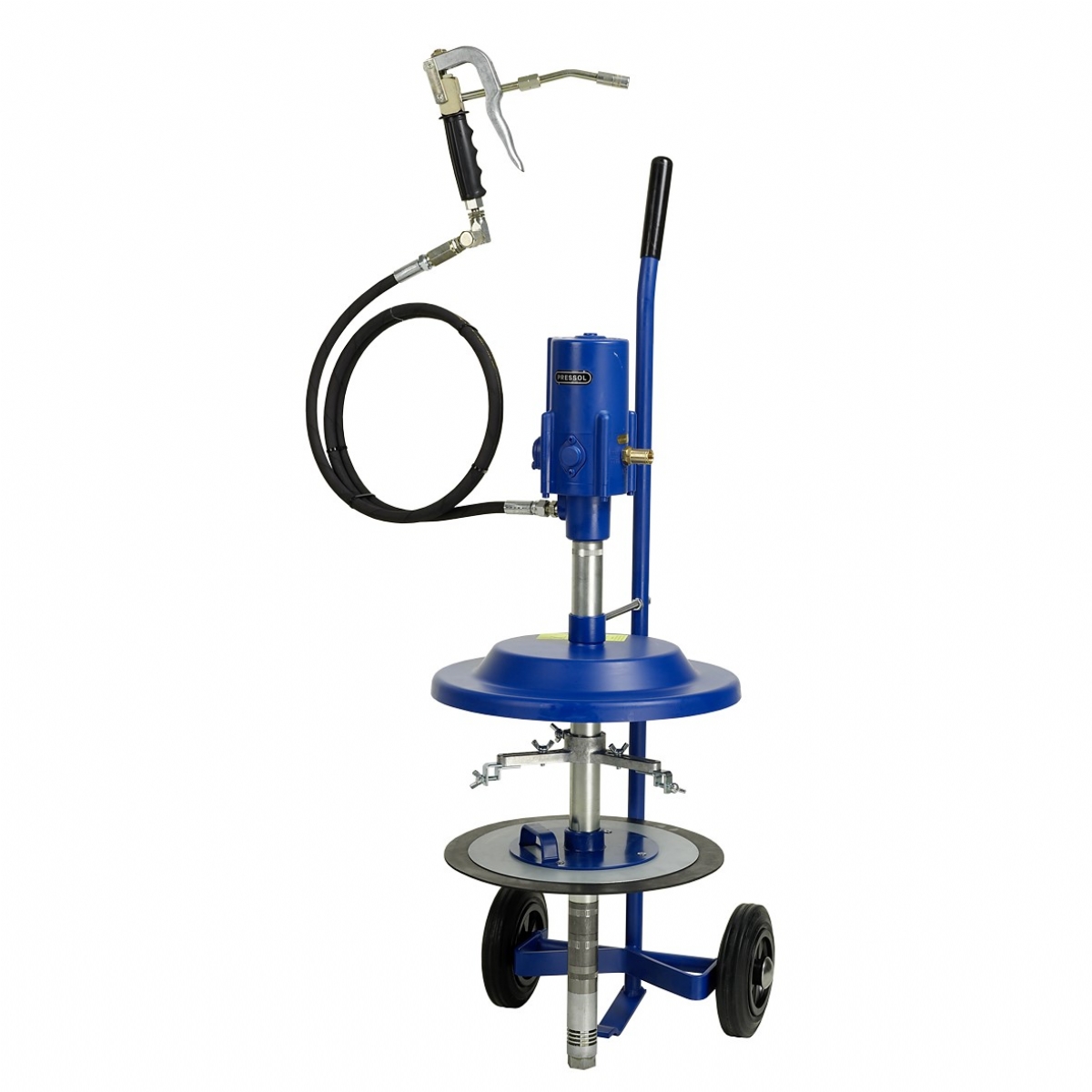

Grease Supply System Mobil 15- 20 kg.
Grease Supply System Mobil 15- 20 kg.
Item No: 18417 051 Mobil
Technical data
Compressed air connection: Male quick release adapter, for Rectus
coupling, type 26, NW 7,2 mm
Grease connection: coupler, for hydraulic grease nipples, DIN 71412
Weight (kg): 13,5
Specification
Pneumatic grease pump 50:1
Special pump mechanism
Male quick release adapter (20 062)
For 20-kg-container, ø 270 – 310 mm
High pressure hose, 2 m (18 022) and trolley (17 004)
Dust cover, stabilising-fixing bracket and follower plate
High pressure grease gun (18 104)
Z-swivel joint (18 082)
Pressure reducing valve (pre-set at 8 bar)
