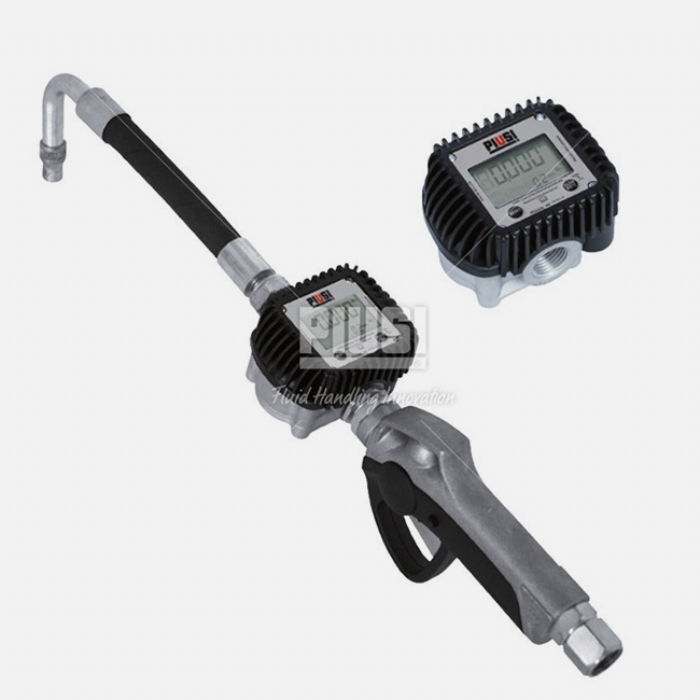

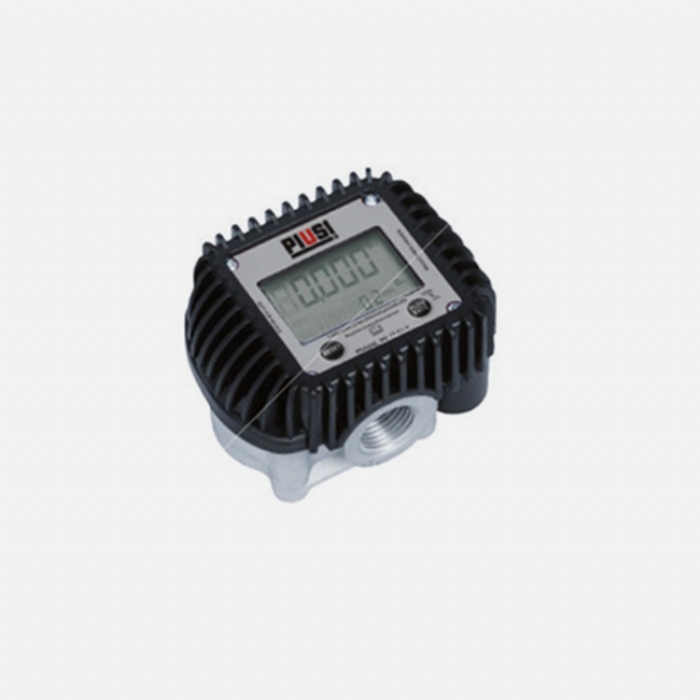

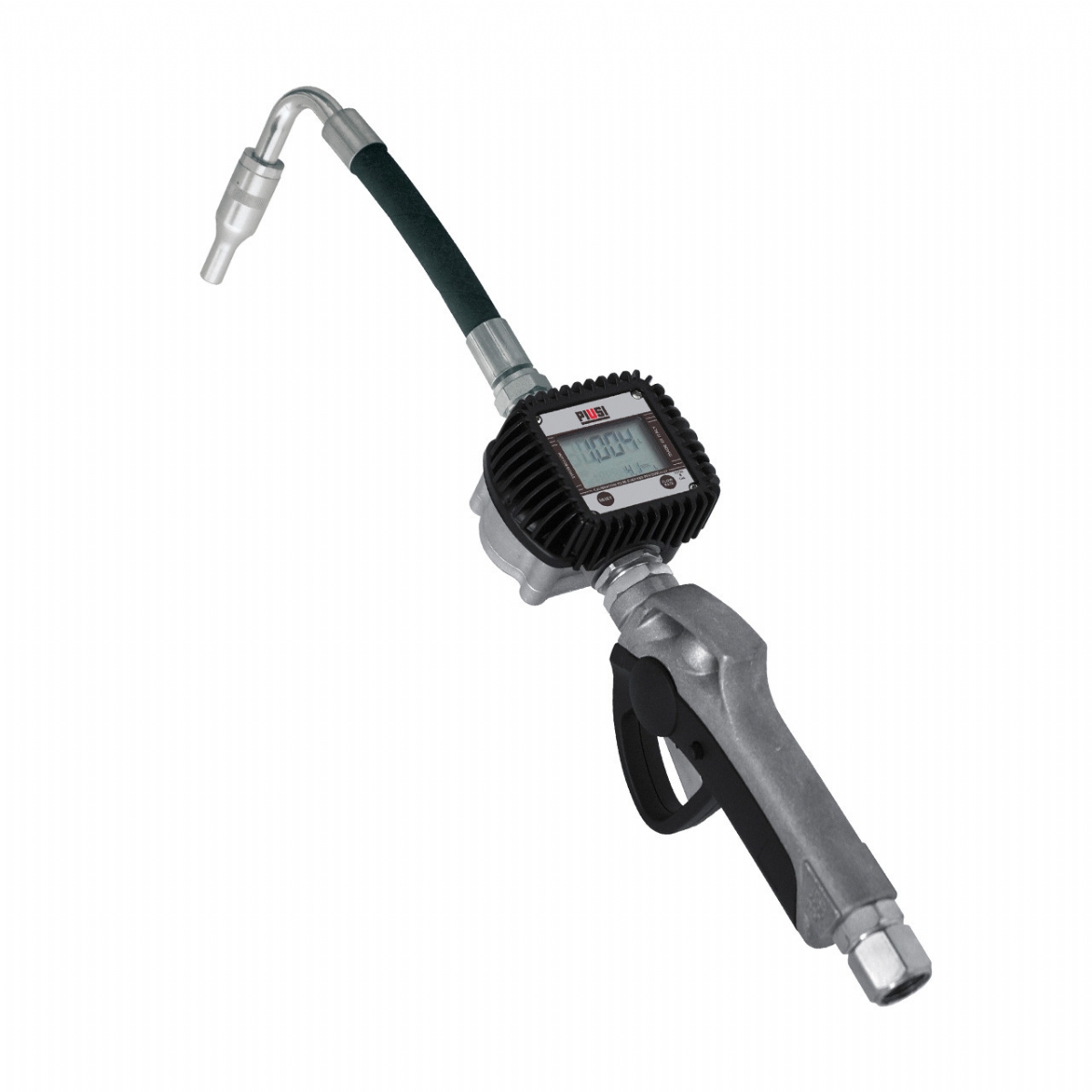

Piusi Digital Meter and Hose For Oil

Piusi Digital Meter and Hose For Oil

Piusi Digital Meter and Hose For Oil

Item No: PIUSI K400

Connection: G 1/2” female

Nominal width: DN 12

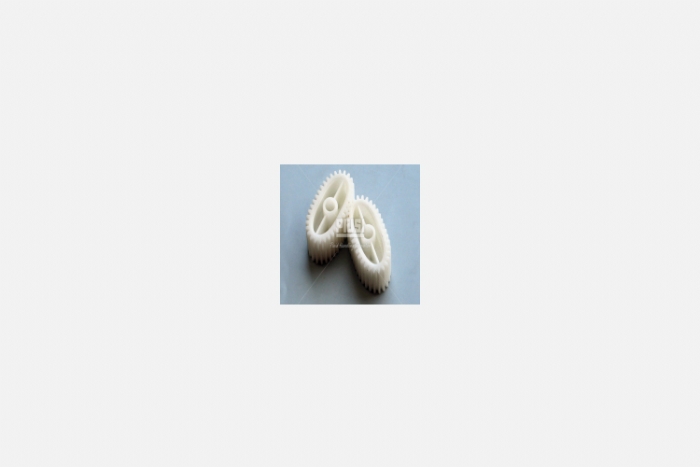

Metering principle: Oval gears

Typical media: Engine oils SAE 5 – 50, gear oils SAE 80 – 240

Flow capacityw (l/min): 0 – 30

Viscosity (mPa s): 8 – 5000

Nominal pressure (bar): 70

Operating pressure (bar): min. 0,30

Temperature range (°C): -10 / +50

Measuring tolerance (%): ± 0,5%

Repetition tolerance (%): ± 0,3

Solution (l): 0,002

Pulses (pulses/l): 216

Design: Not calibratable

Material of casing: Aluminium die casting

Display: digital, three digits and two decimal digits

Height of the digits (mm): 8

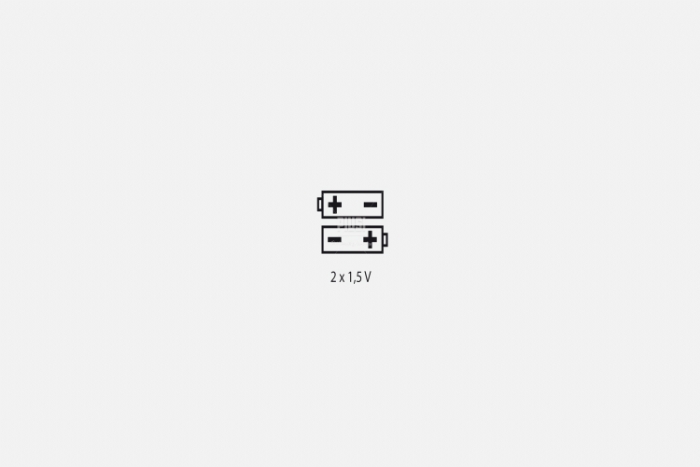

Battery type: LR1 1,5 V

All Products 2 years warranty.
