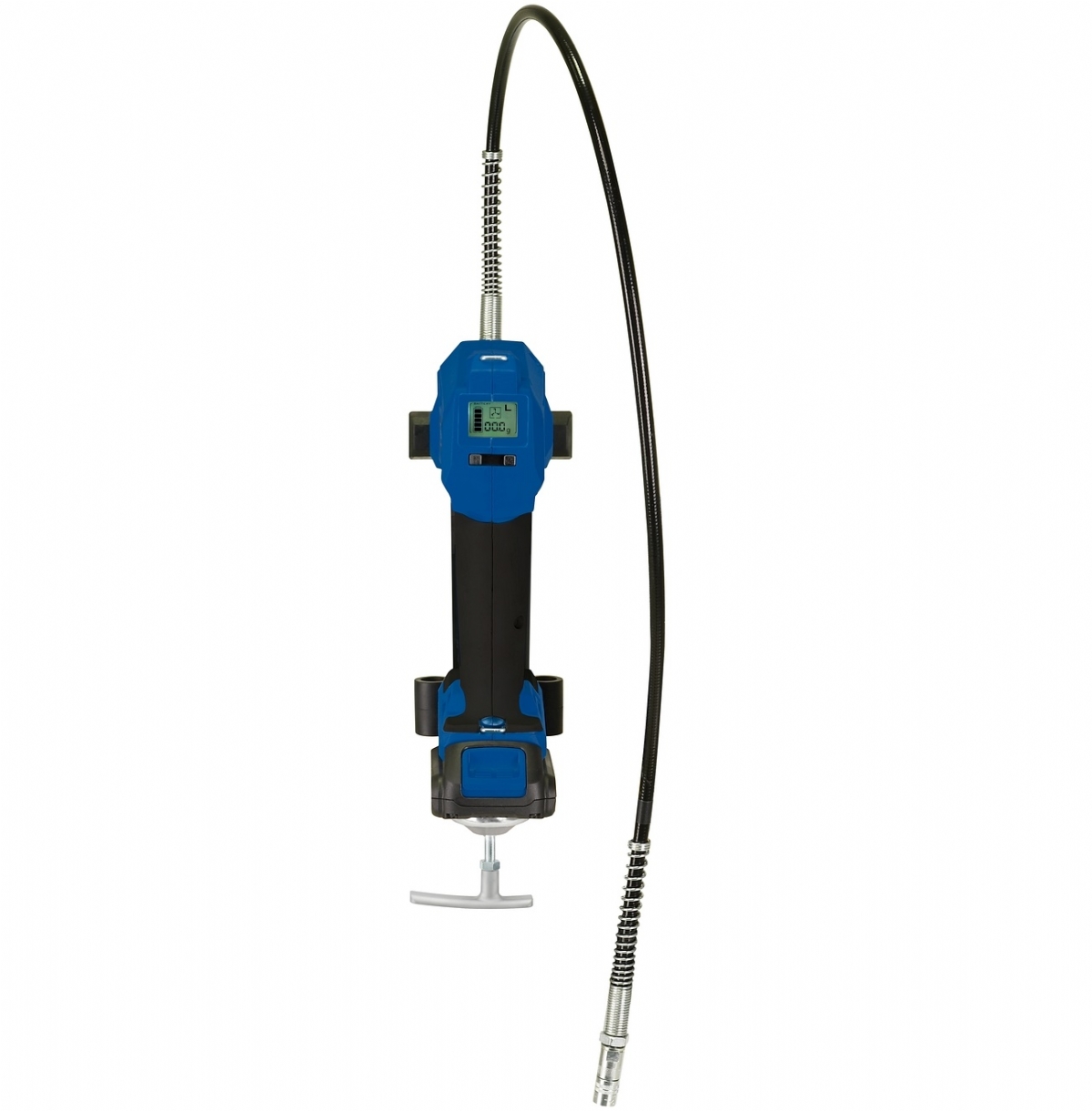

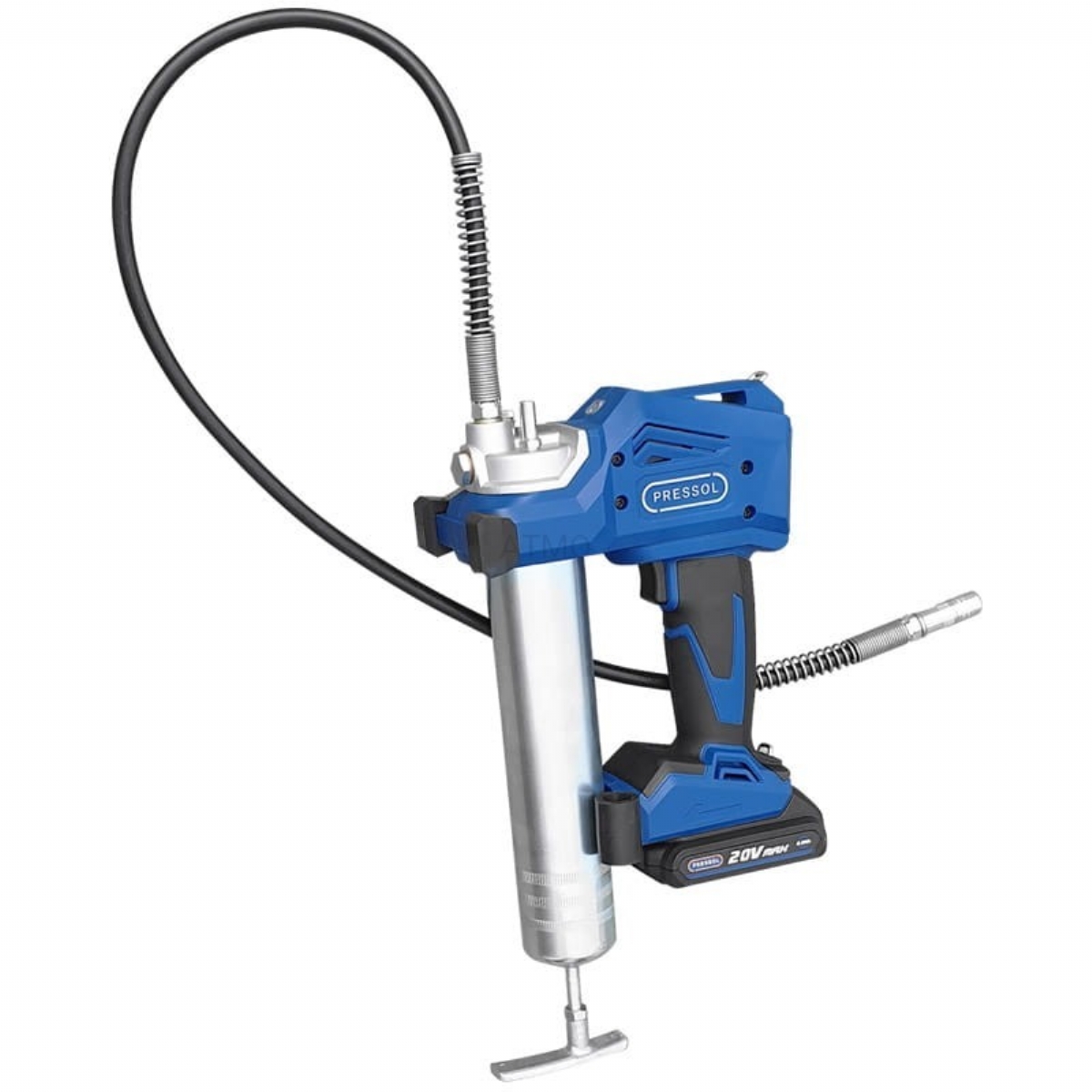

Pressol Grease Gun 20 V Accu ( Digital Display )

Pressol Grease Gun 20 V  Accu ( Digital Display )

Pressol Grease Gun 20 V Accu ( Digital Display )

Item No: 18051

Technical Data;

Accu grease gun with ZBH 20 V-2000 mAh

Grease pump piston actuation: electric motor driven by a 20 V accumulator

ensures continuous grease supply

Refilling options: 400 g grease cartridge, DIN 1284, or bulk grease

Delivery rate (g/min): approx. 150

Delivery per accu load: approx. 25 cartridges of 400 g (without counter pressure)

approx. 7 cartridges of 400 g (at approx. 100 bar counter pressure)

Operating pressure max. (bar/psi): 400 / 5800,

Maximum pressure (bar/psi): 680 / 10000

Charging time: approx. 60 minutes

High performance accumulator: 2000 mAh

Grease supply hose: 11 x 1000 mm

Operation of push rod: with T-grip, Cover: loose

Wall thickness of grease gun tube (mm): 1

Charger : Input voltage (V): 230 V AC, Frequency (Hz): 50/60, Input current max. (A): 0,5

Input power max. (W): 45, Output voltage (V): 16-21 V DC, Output current (A): 1,5

Connecting cable with Euro two-pin plug, , length (m): 1,6

Dimensions without cable LxWxH (mm): 180 x 120 x 85

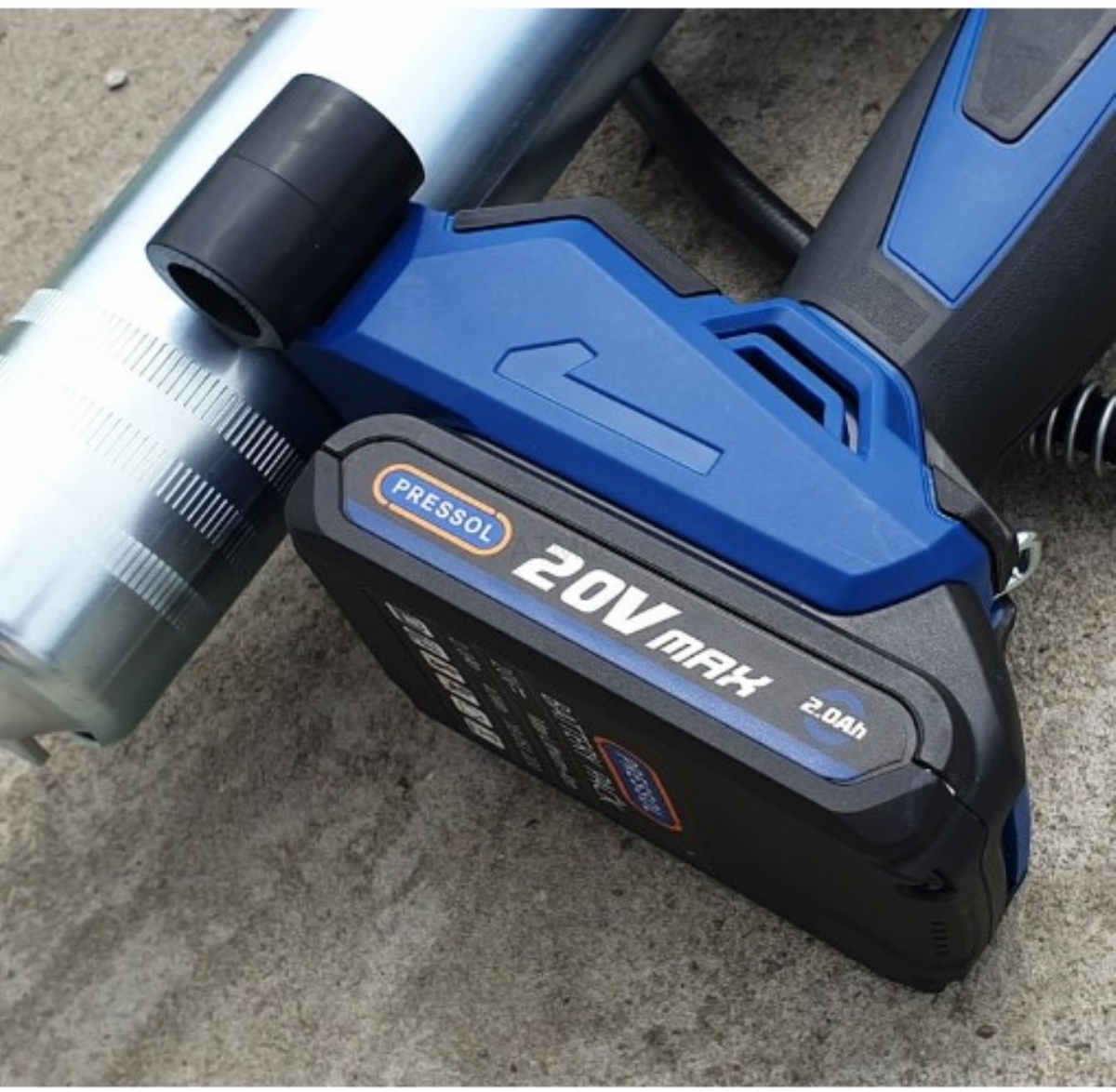

Accu

Capacity: 2000 mAh, Voltage (V): 20 , Accu: lithium-ion accumulator

Charging time: approx. 60 minutes

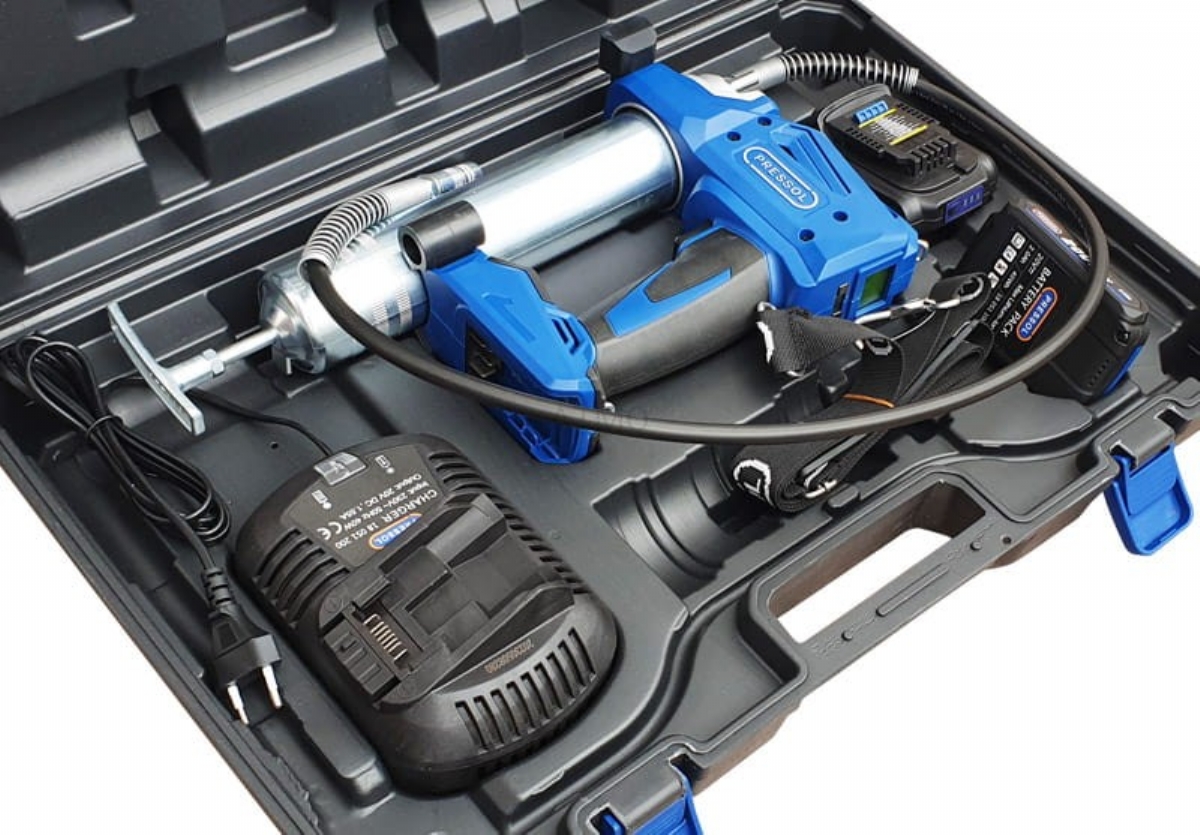

● Electric motor driven by a 20 V accumulator

● 2 lithium-ion accumulators 20 V, 2000 mAh (18 051 100)

● Filling nipple (12 672) and ventilating valve (85 277)

● High-pressure grease supply hose with anti-kink spring, 11 x 1000 mm (18 042)

● Precision machined coupler, 4 claws, M 10 x 1 female (12 643)

● Retention adapter, G 1/8" female, M 10 x 1 male (12 016) and retention adapter, NPT

1/8'' female, M 10 x 1 male (12 020)

● Grease gun tube galvanized

● The grease gun is equipped with a stand and a hose holder

● Support foot for easy handling, stable support

● 1 Carrying strap

● Packed in plastic case, black

No issue of guarantee for the data. 04.11.2020 14:31:46

Special notes

● Operates with greases up to NLGI grade 2 at 20°C

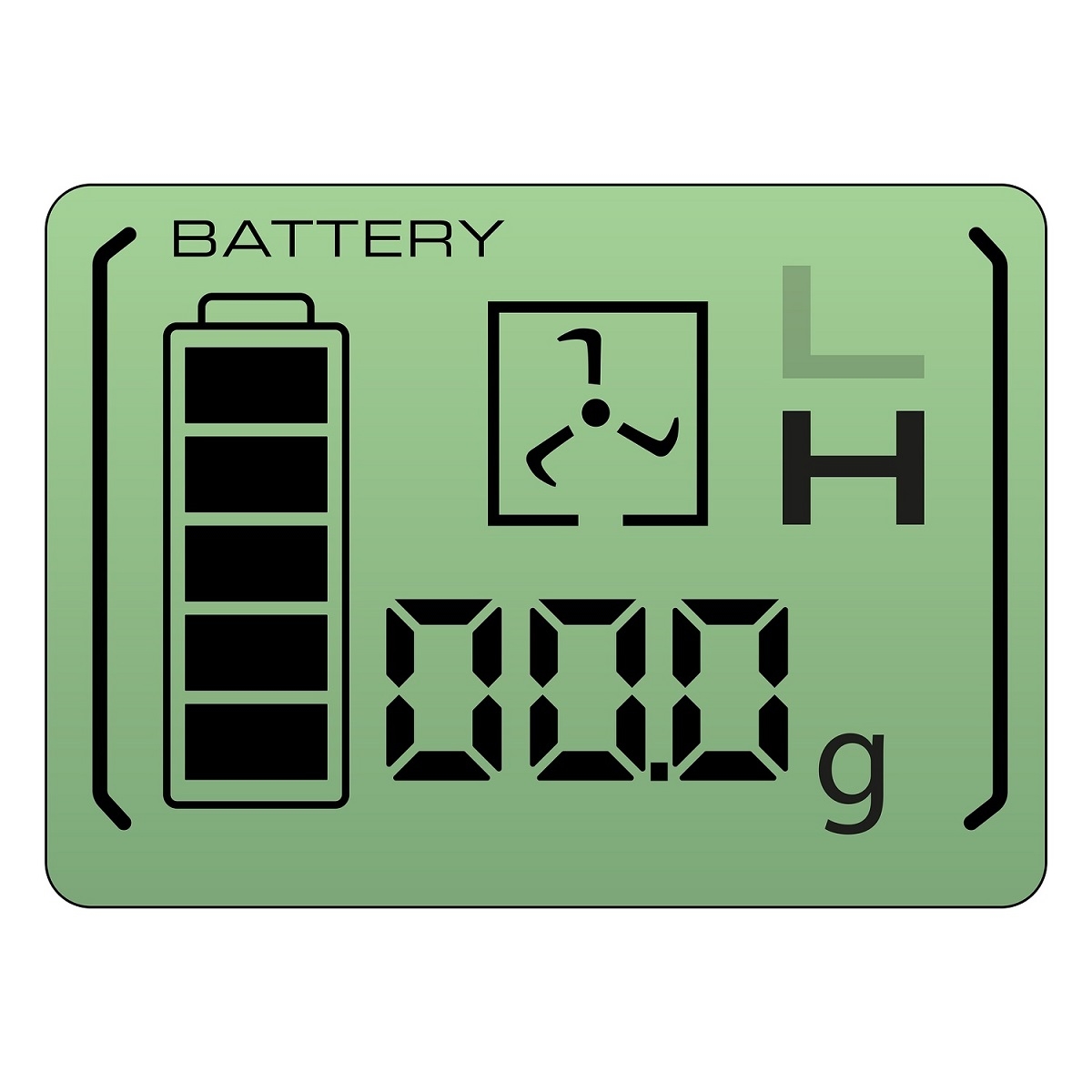

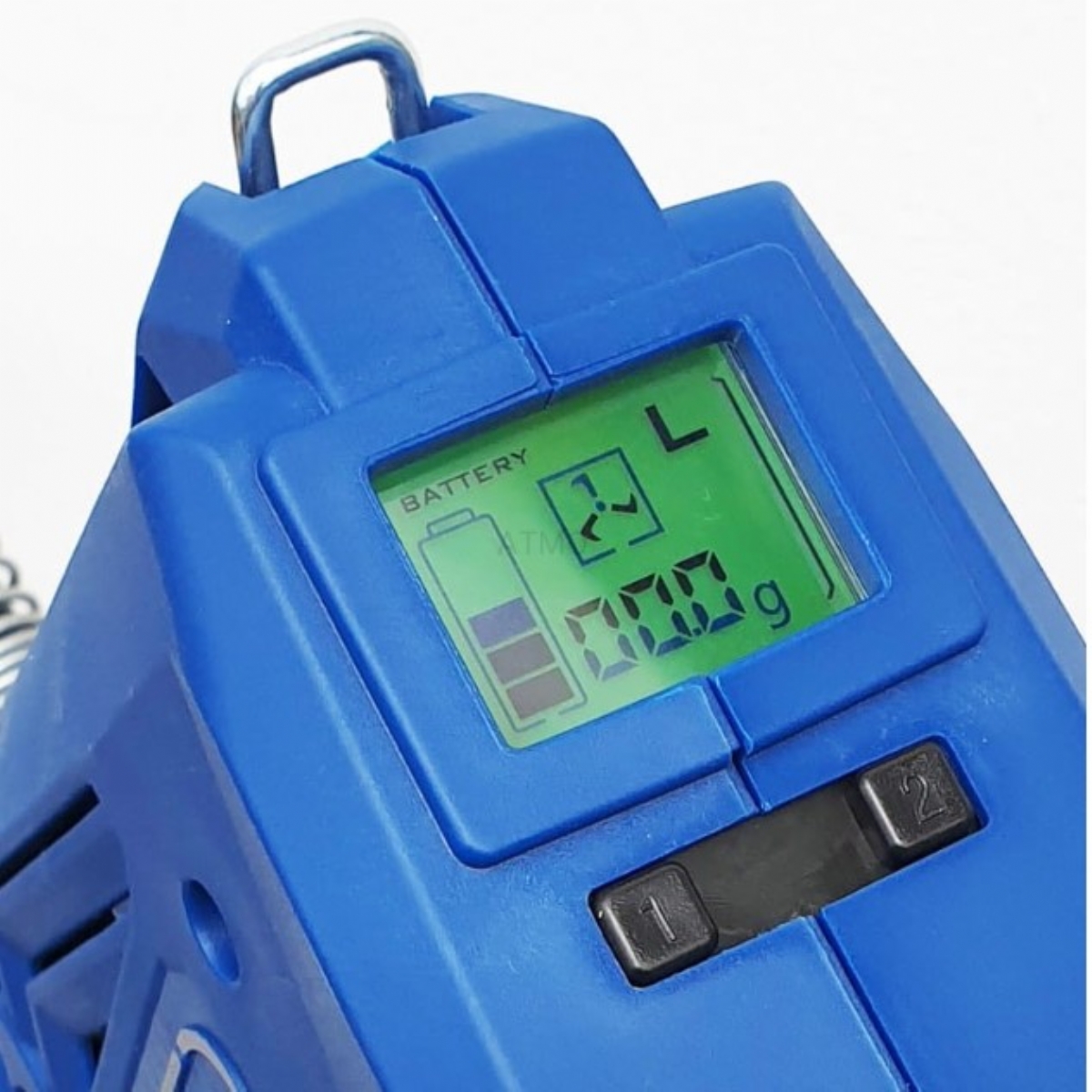

● Integrated display with grease flow meter, battery charge indicator and indication of

grease delivery

● Display blinks red in the event of counter pressure or when the power consumption is

too high

● Alarm in the event of grease leakage – Grease volume meter remains unchanged

● 2 ajdustable grease supply speeds (L - H)

● Molded seal for absolute tightness when using bulk grease or cartridges

● The accumulator's charging level is indicated at the grease gun and at the

accumulator

● Safe handle on the push rod

● Optimum localisation of the lubrication area by LED light, e.g. in case of difficult to

access grease nipples or poor lighting conditions

● Anti-kink springs prevent kinks in the hose and extend its service life

● Venting over venting valve or quick and easy screwing-in by 1,5 turns of the tube
