Pressol Urea Electric Diaphragm Pump 220 V.
Item No: 25280
Technical data
Connecting cable, length (m): 2,8
Connection suction side: G 1'' male
Connection discharge side: G 1'' male
Hydraulic data
Pump design: diaphragm pump, selfpriming
Delivery rate under free discharge (l/min): 35
Suction height (m): 3
Discharge pressure up to (bar): 1,7
Pumping media: AdBlue®, water
Motor data
Insulation class: F
Highest permissible limit temperature (°C): 155
Voltage (V): 230
Frequency (Hz): 50
Power consumption (A): 1,5
Power (kW): 0,36
Thermal protection: self resetting
Duty cycle (min): Continuous operation – a real endurance runner
Rotation speed (rpm): 2800
Type of construction: IMB 3
Safety class: IP66
Materials of parts in contact with liquid
Diaphragm and sealings: EPDM / FKM
Pump housing: PA 6 GF 30

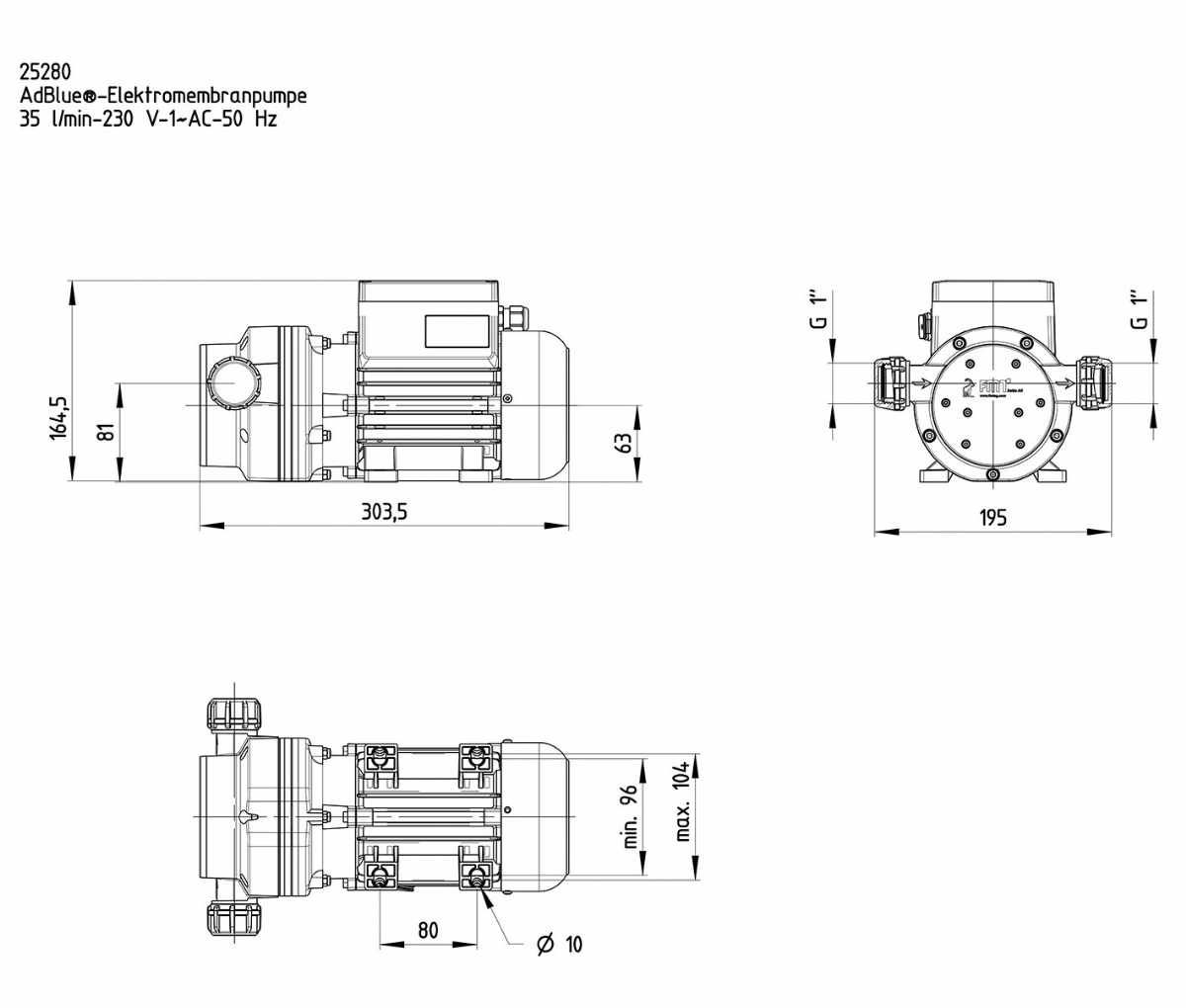

Dimensions LxWxH (mm): 310 x 180 x 160
Weight (kg): 6,86
Specification
● Urea electrical diaphragm pump with integrated bypass
● On/Off switch
Special notes
● First class construction of electric machines and pumps
● Designed for a long service life
● Encapsulation of the electric motor, which, in case of extreme temperature
fluctuations, largely prevents the formation of condensed water and of short-circuits resulting thereof
● Motor and switch case made of shock resistant, die-cast aluminium
● Continuous operation – a real endurance runner
● Suction hight 3 m
● Materials guarantee a low weight and an exceptional lifetime with optimized efficiency
