Electric Drum Barrel Pump PP

Electric Drum Barrel Pump PP

Item No: JP280 PP

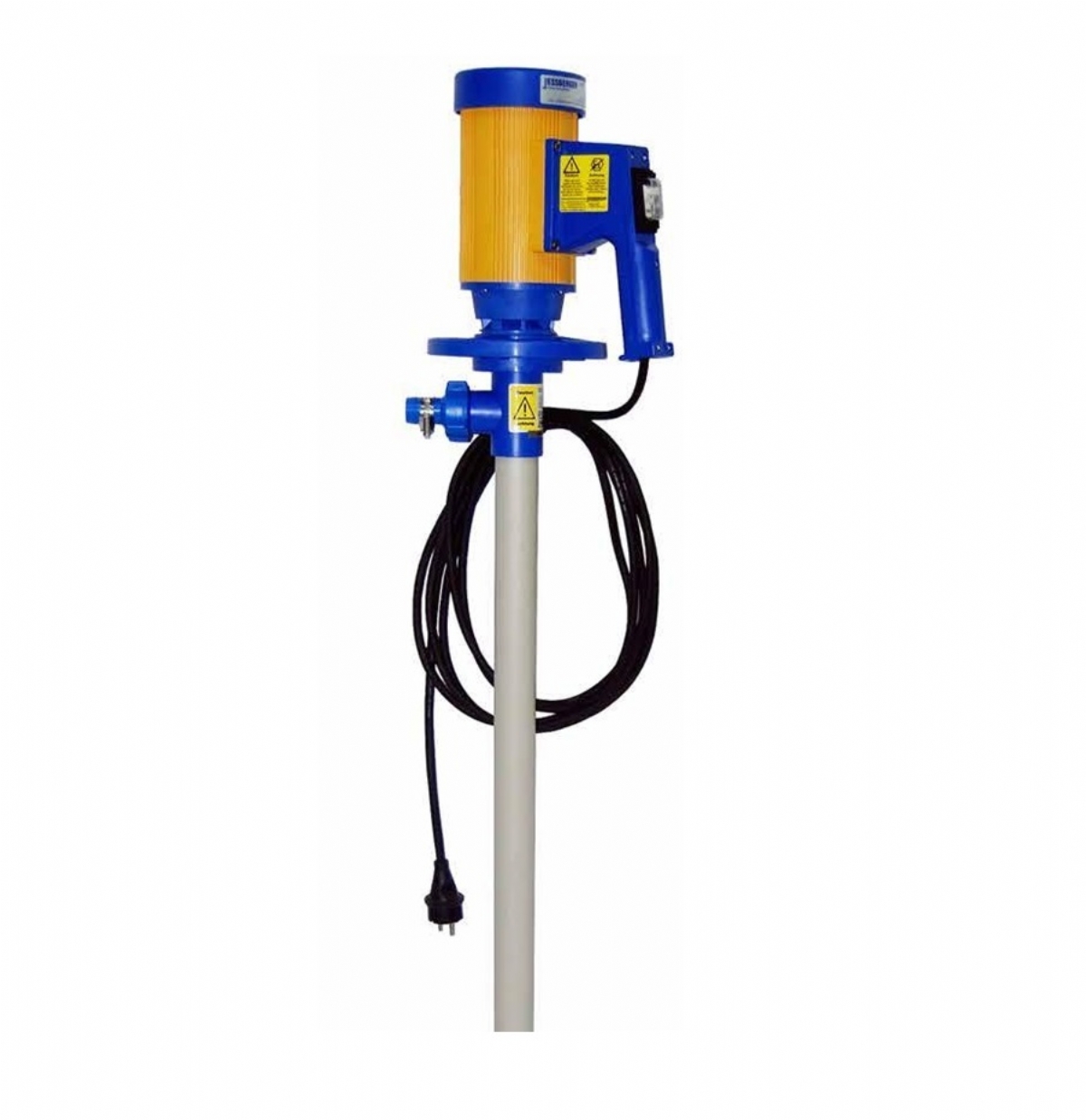

Drum Pump Set with electric motor for light acids and alkalis

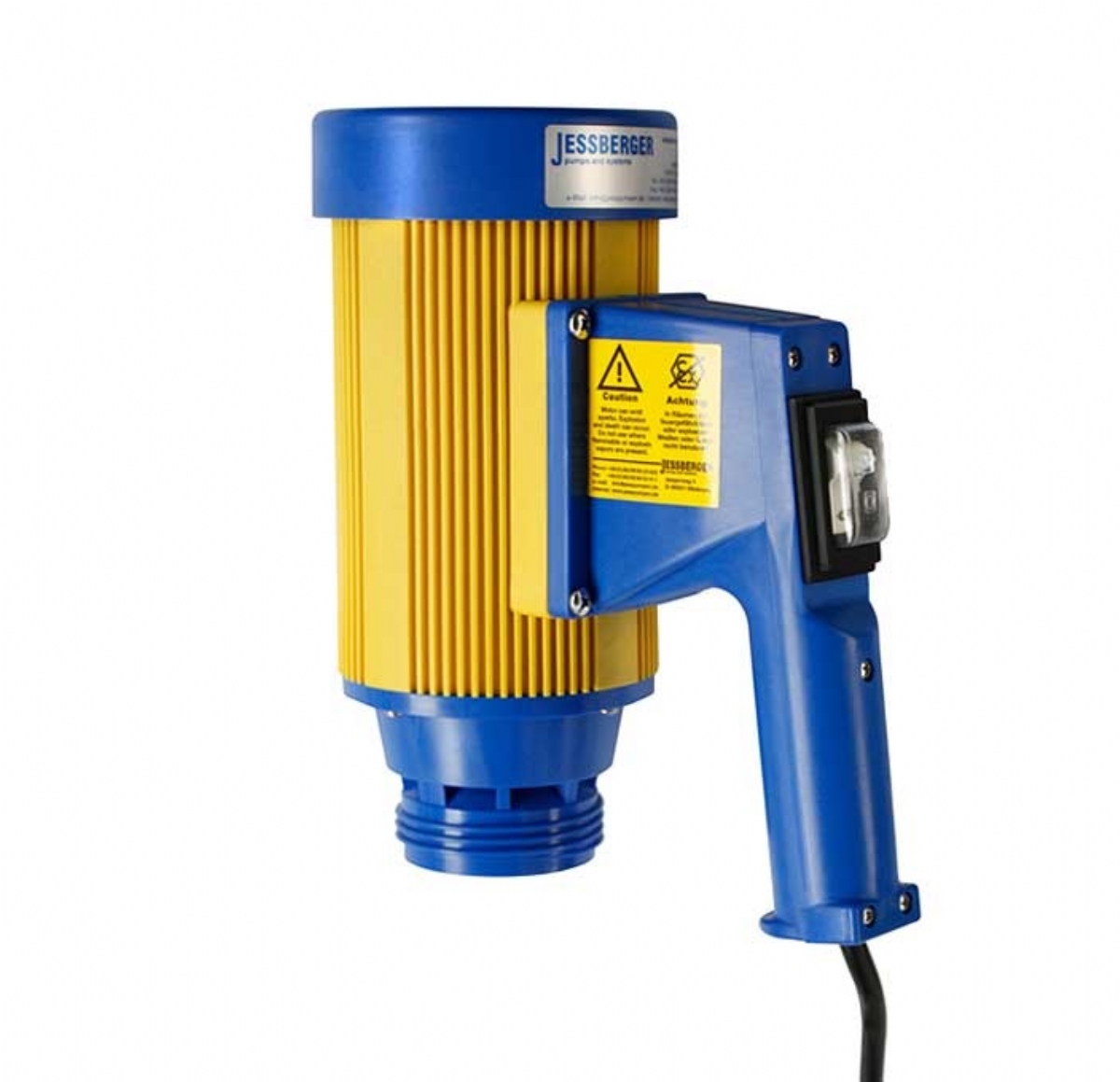

JP-280 PP (HC) Universal motor 230 or 115 V, 50/60 Hz, 825 W, splash protection to IP 24, double insulated class II, over load protection switch with low voltage release, 5 m cable with plug.

Pump tube:

Polypropylene, outer-Ø 41 mm, HC-shaft 2,4610

Connection thread G 1¼”

Hose connection 1″ (DN 25)



Operating data JP-280 Flow rate  (with hose and oval gear meter)Ø 41 mm up to 112 l/min* (Rotor)HeadØ 41 mm up to 16 m* (Rotor)Viscosityup to 1000 mPas*Densityup to 1,9** All physical data are real measured maximum values.

* Test medium water 20° C, 2 m pressure pipe 1″, oval gear meter 1″, measured values: ± 5%

Attention: When using a nozzle, the flow rate is reduced to app. 60-80 l/min (depends on the pump and application).
