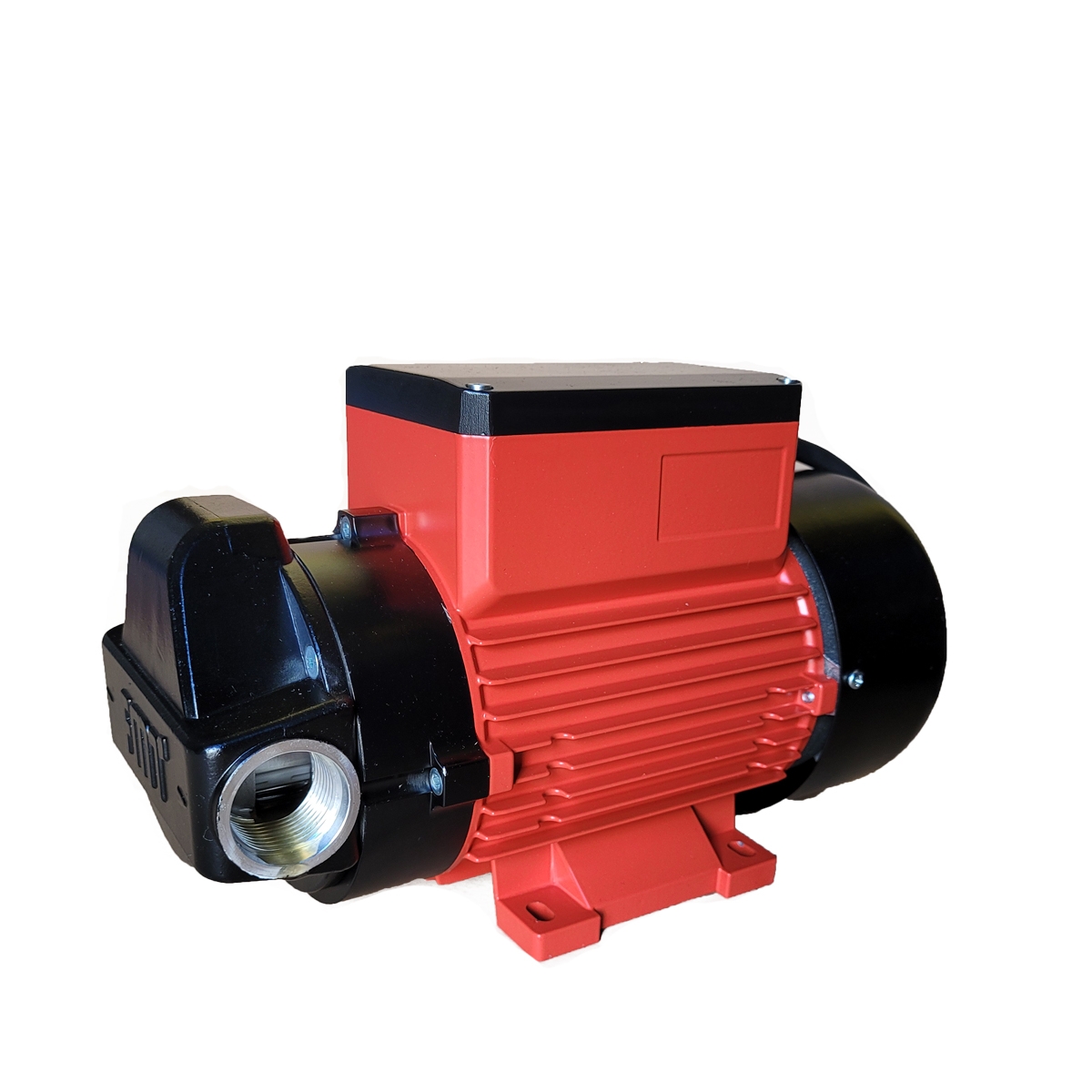

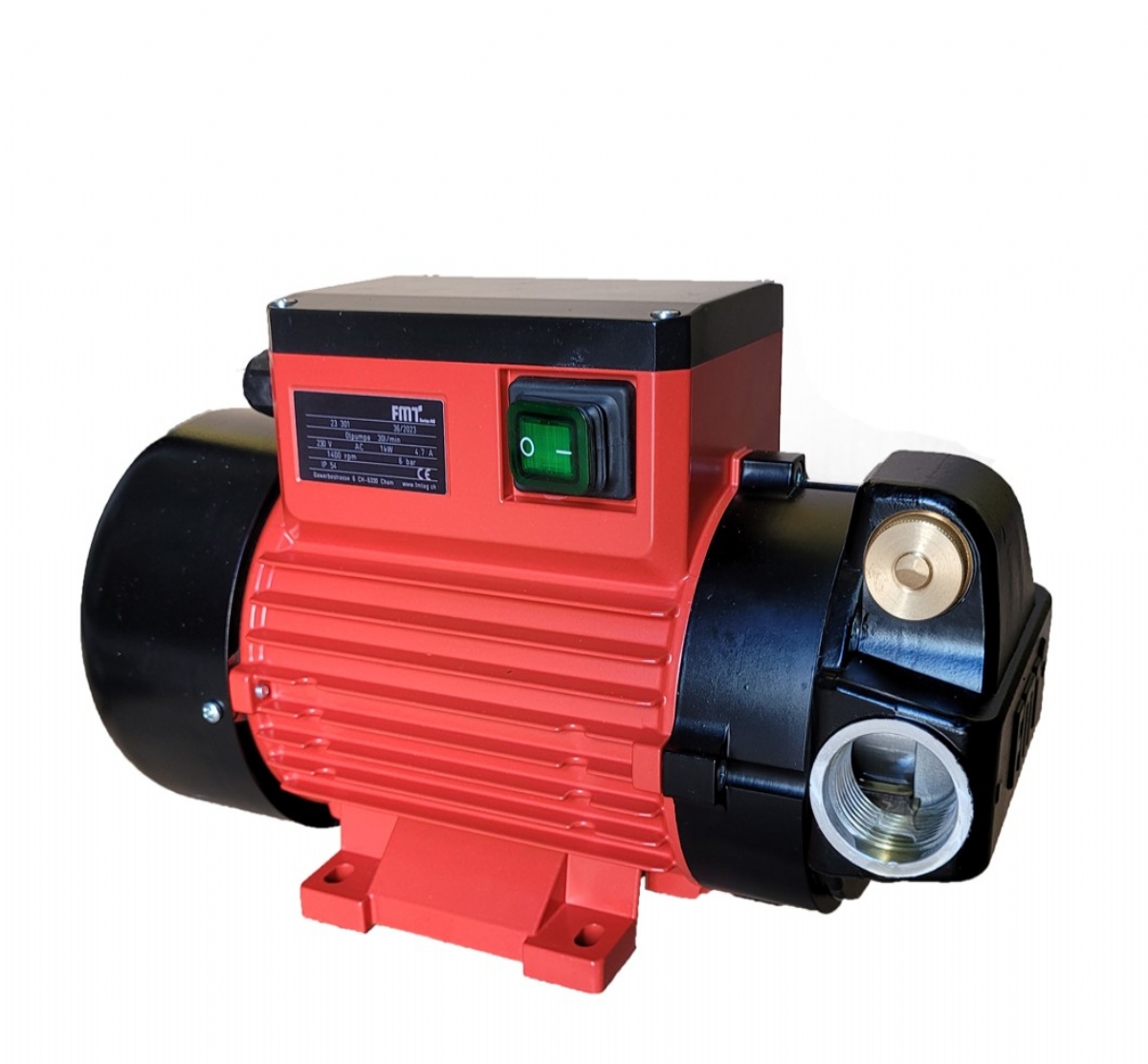

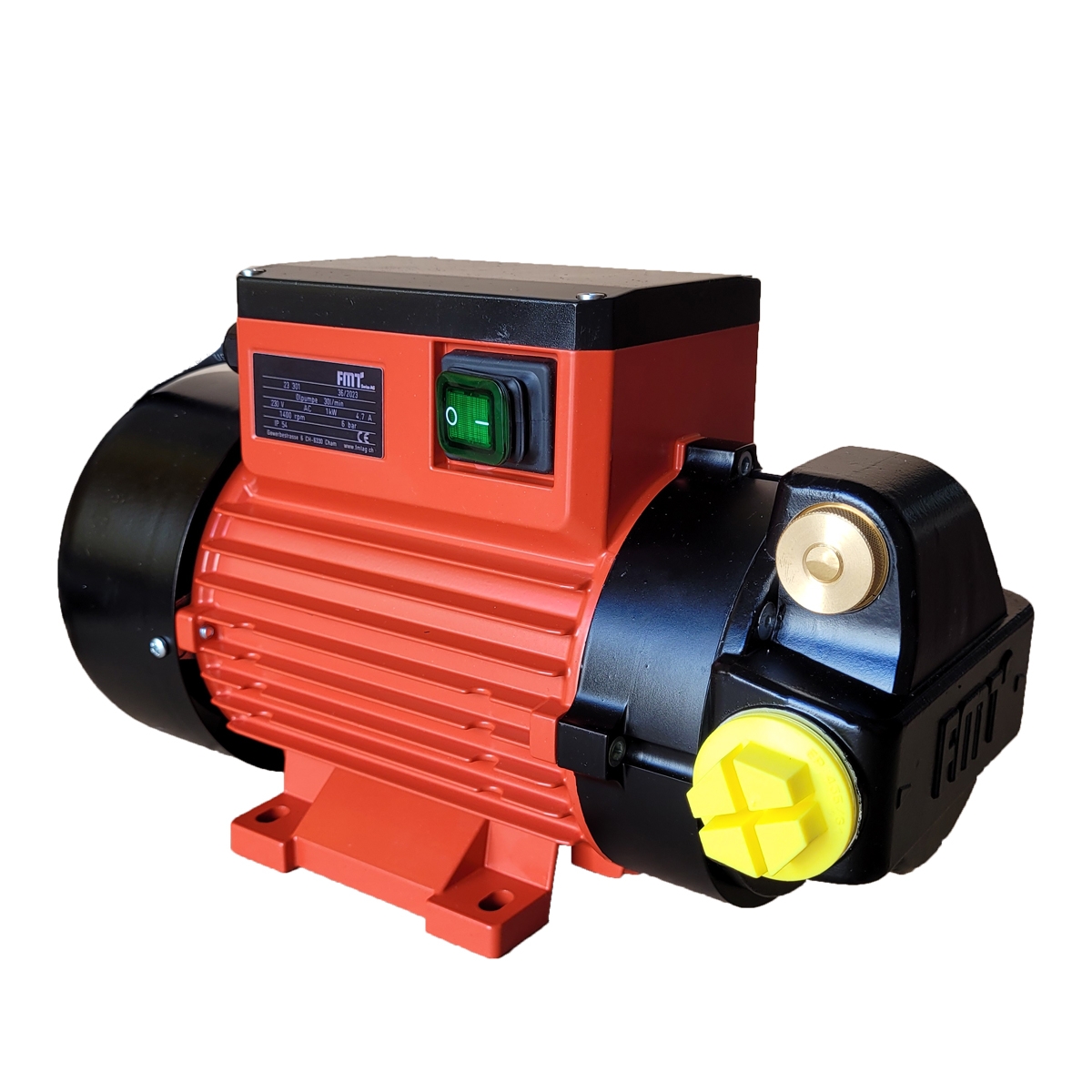

Electric Vane Oil Pump 220 V

Electric Vane Oil Pump 220 V

Electric Vane Oil Pump 220 V

Item No: 23301

internal vanepump with corrugated filling part. This construction effects:

marginal inhomogeneous grade of volume flow rate

low noise level

compact construction

The longer tooth engagement provides an improved seal effect and a better suction and discharge angle

optimal suction characteristics

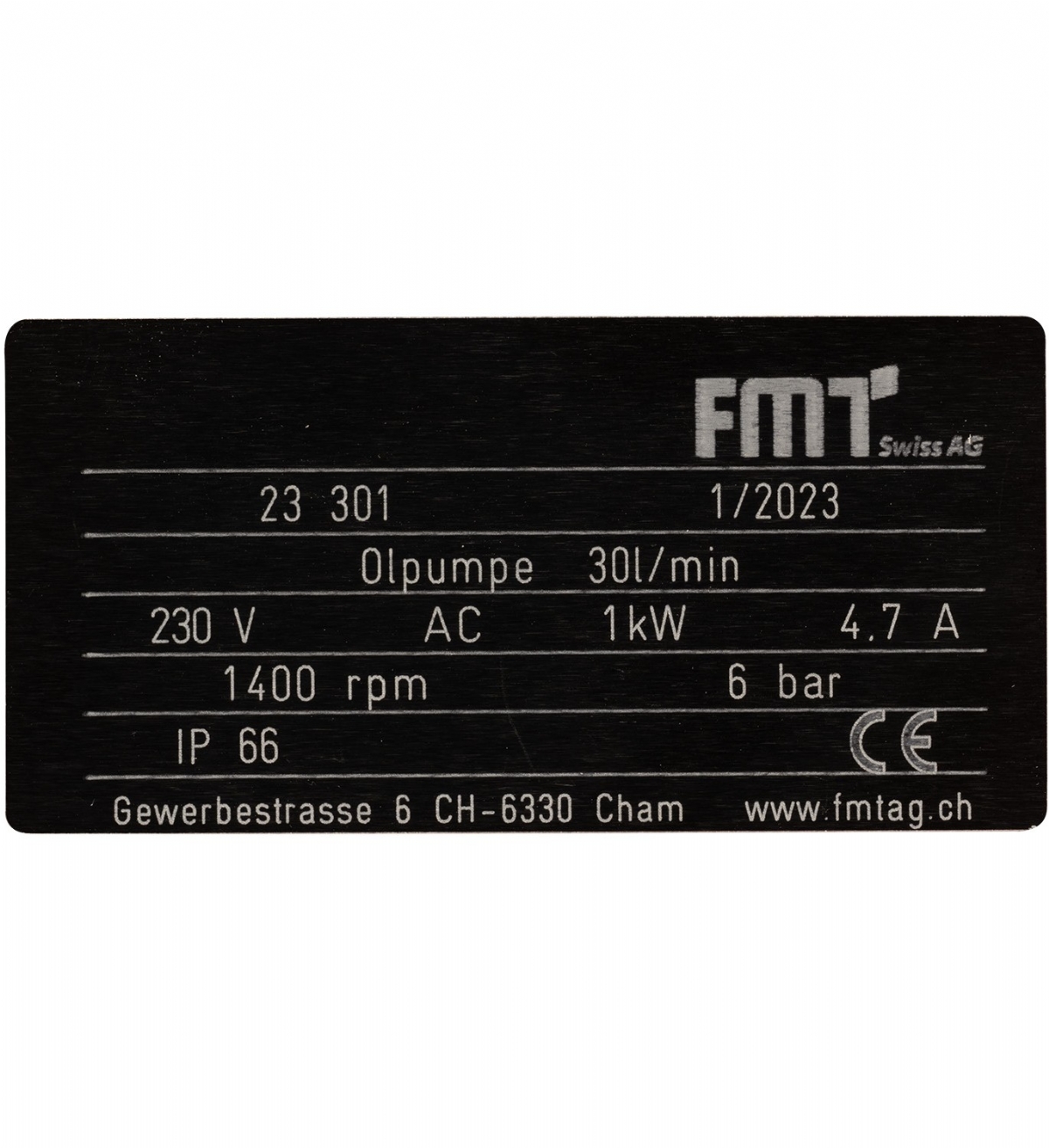

Technical data

Connection suction side: G 1'' female

Connection discharge side: G 1'' female

Hydraulic data

Pump design: vane pump

Nominal operating point (bar): 1

Maximum operating point (bar): 6

Delivery rate under free discharge (l/min): 30

Max. suction height (m): 2,5

Direction of rotation: right

Pumping media: oils up to SAE 80

Operating temperature area (°C): +10 / +50

Motor data

Voltage (V): 230

Frequency (Hz): 50

Power consumption (A): 5,0

Power (kW): 1,2 , 1.6 HP

Nominal speed (rpm): 1450

Torque (Nm): 5,5

Safety class: IP54

Type of construction: IMB 3

Materials of parts in contact with liquid

Pump housing: EN AC 42100

Rotor: sintered metal

Vanes: POM

Seal: FKM

Raceway: GG 25

Dimensions LxWxH (mm): 300 x 160 x 185

Weight (kg): 12,1


● Vane pump, with integral bypass

● On/Off switch

Special notes

● First class construction of electric machines and pumps

● Designed for a long service life

● Encapsulation of the electric motor, which, in case of extreme temperature

fluctuations, largely prevents the formation of condensed water and of short-circuits

resulting thereof

● Motor and switch case made of shock resistant, die-cast aluminium

● Continuous operation – a real endurance runner

● Small tolerances provide a high suction- and pressure performance

All Products 2 years warranty.
