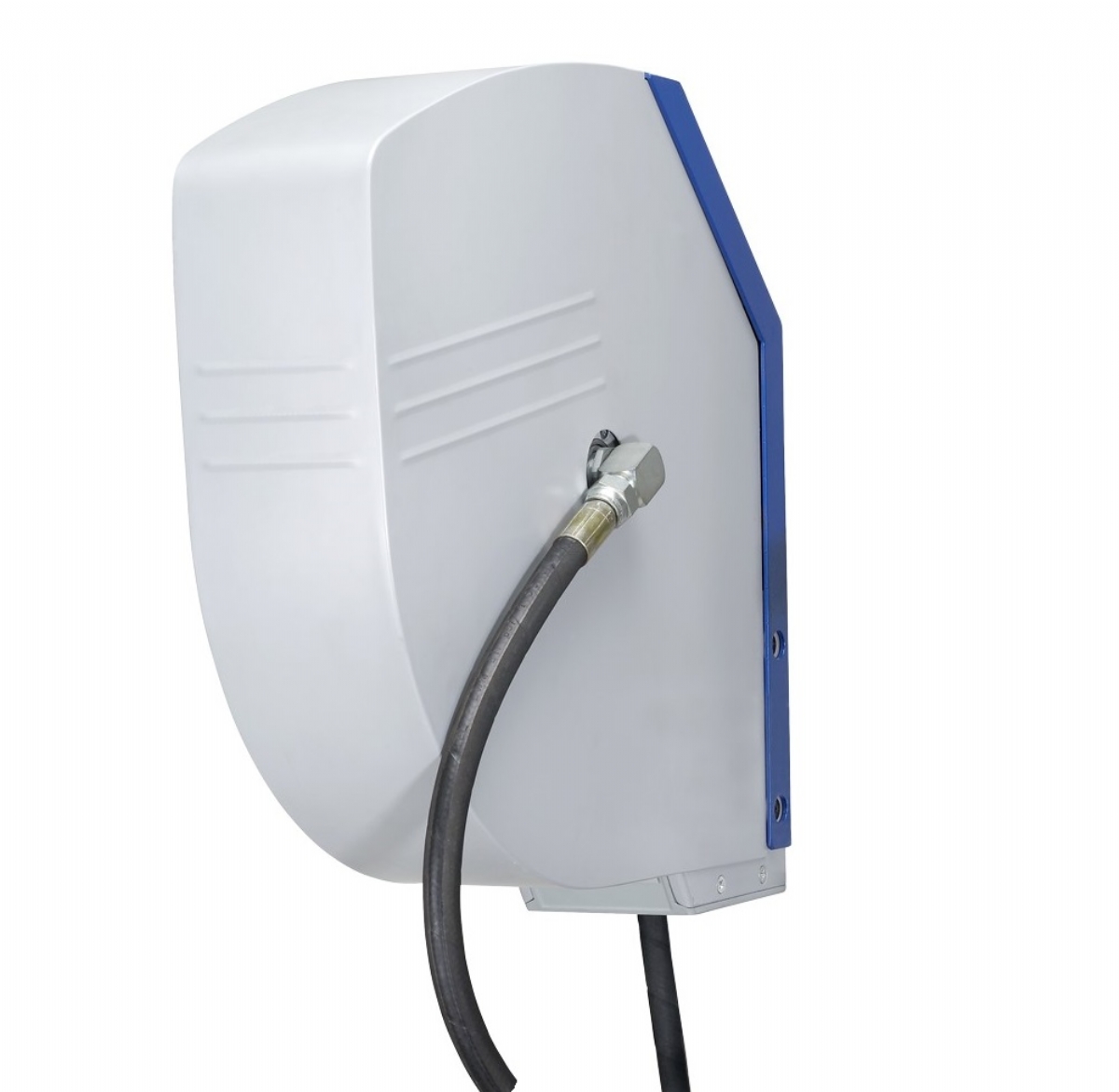

Pressol Hose Reel- For Grease 15 mt
Pressol Hose Reel- For Grease 15 mt
Item No: 29273
Pressol Hose Reel- For Grease 29273
GDA-WB-400 bar-DN 6-15 m
Technical Data
Length of discharge hose (m): 10
Connection discharge hose: G 1/4″ male
Length of connecting hose (m): 1
Connection to connecting hose: G 1/4″ female/female
Inner diameter of hose (DN): 6
Operating pressure max. (bar): 400
Colour casing: window grey, satin, RAL 7040
Arm: window grey, satin, RAL 7040
Supporting plate: window grey, satin, RAL 7040
Encasing: Pantone 294c, blue satin
Mounting bracket: Pantone 294c, blue satin
Dimensions LWH (mm): 495 x 158 x 508
Weight (kg): 24,100
Specification
encased, for wall/floor mounting, outside swivel
