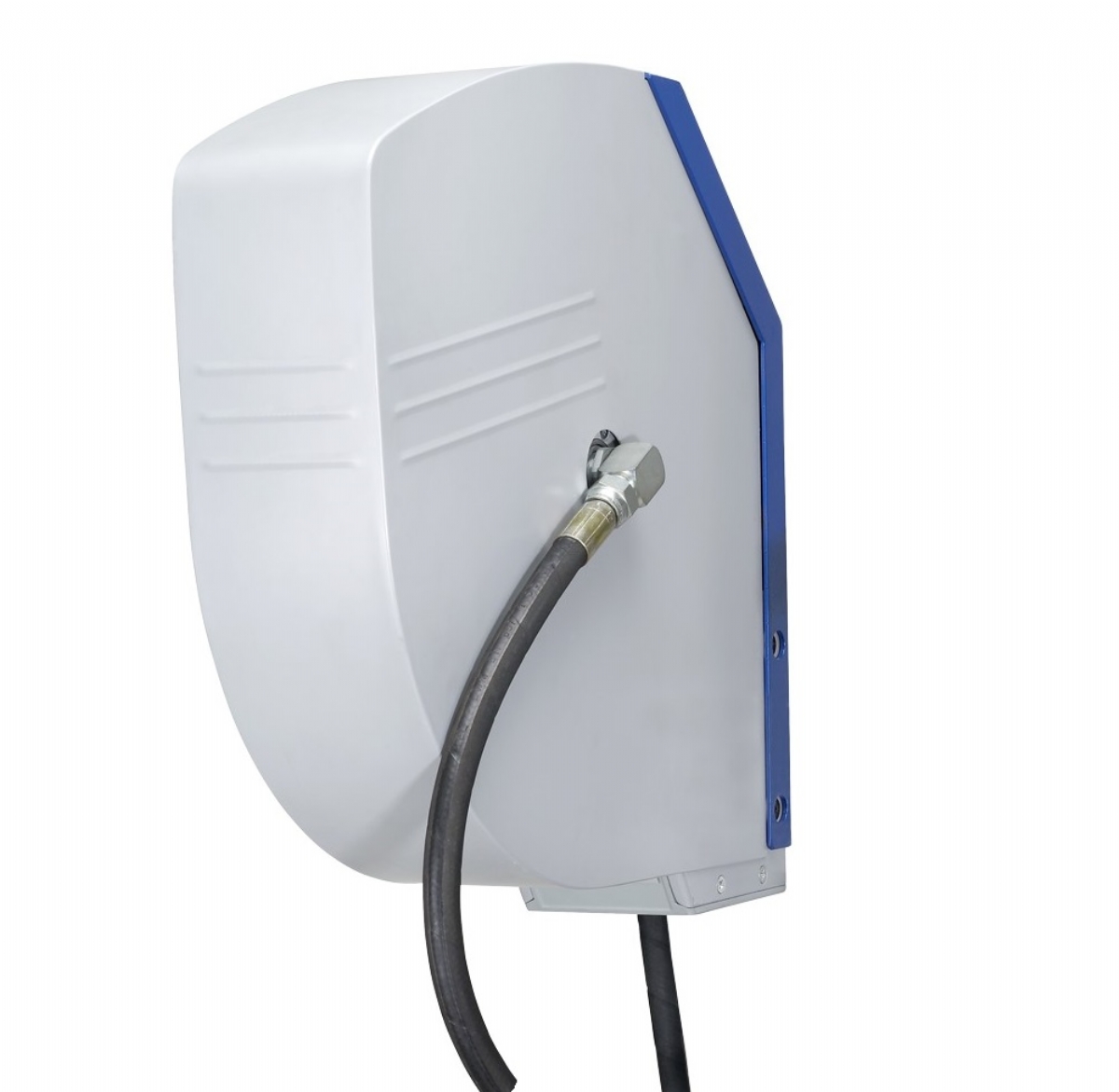

Pressol Hose Reel For Oil and Air 15 mt

Pressol Hose Reel For Oil and Air 15 mt

Item No: 29173

Pressol Hose Reel For Oil and Air ( 29173 )
GDA, WB, 120 bar, DN 12, 15 m
Technical Data
Length of discharge hose (m): 10
Connection discharge hose: G 1/2″ i, G 1/2″ a
Length of connecting hose (m): 1
Connection to connecting hose: G 1/2″ i, G 1/2″ a
Diamètre intérieur du flexible: DN 12
Operating pressure max. (bar): 120
Colour casing: window grey, satin, RAL 7040
Arm: window grey, satin, RAL 7040
Supporting plate: window grey, satin, RAL 7040
Encasing: Pantone 294c, blue satin
Mounting bracket: Pantone 294c, blue satin
Dimensions LWH (mm): 495 x 158 x 508
Weight (kg): 26,100
Specification
encased, for wall/floor mounting, outside swivel
