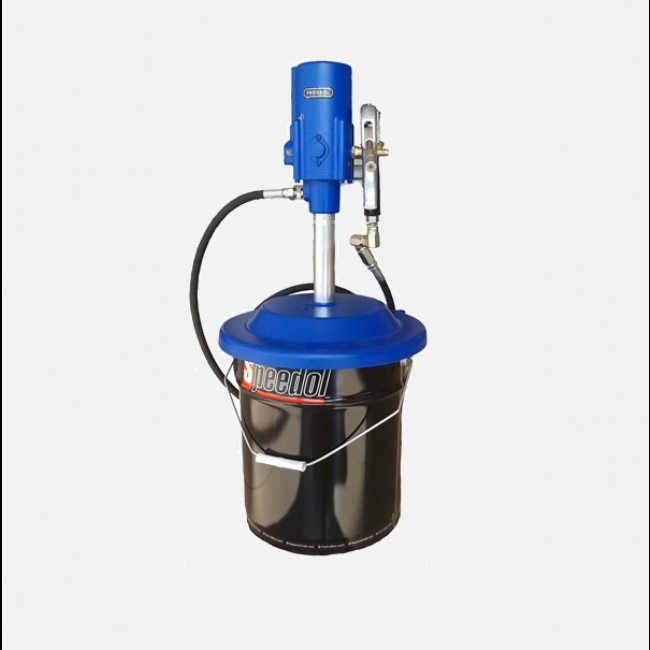

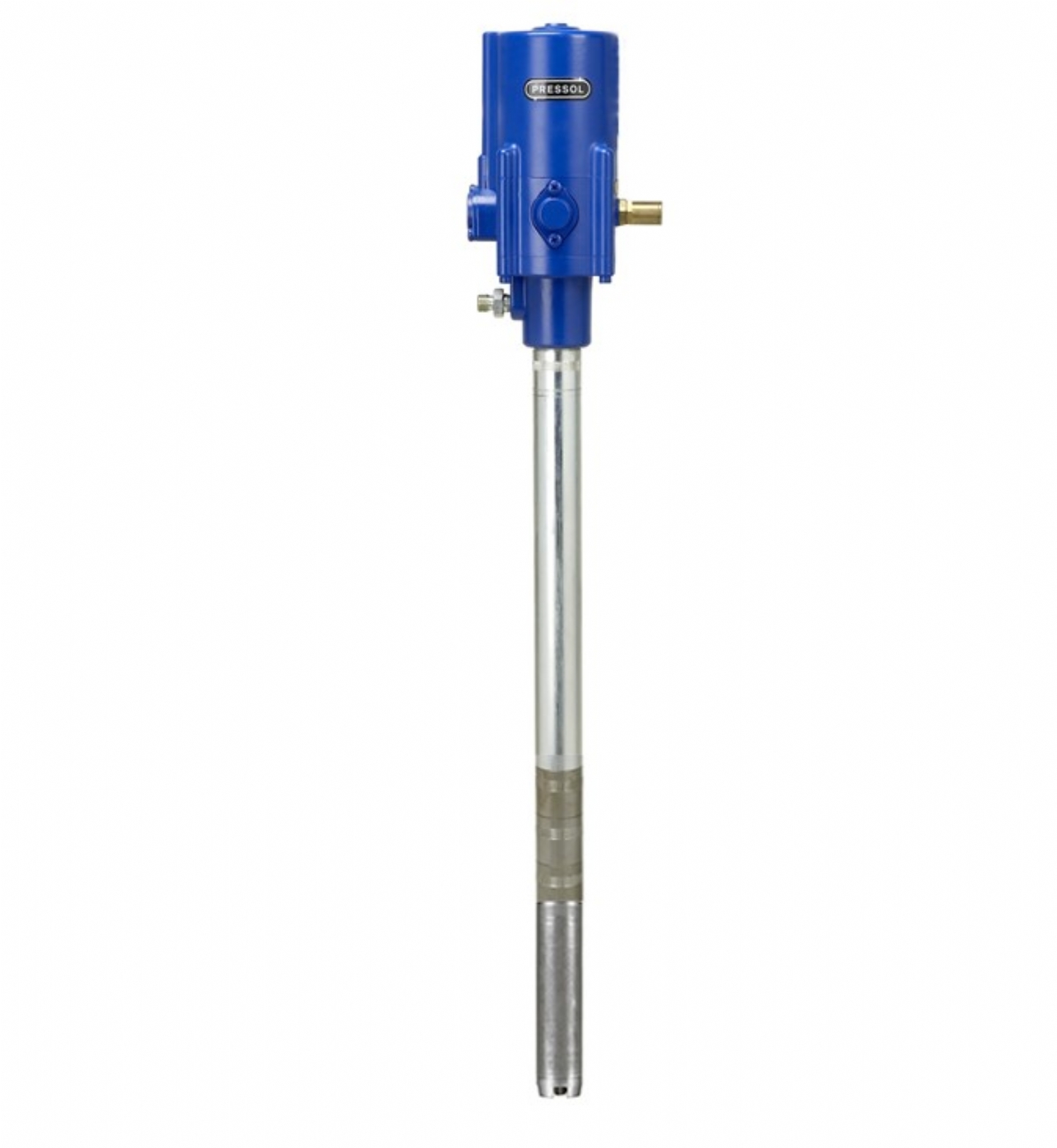

Pressol Pneumatic Grease Pump 50:1 468 mm

Pressol Pneumatic Grease Pump 50:1 468 mm

Pressol Pneumatic Grease Pump 50:1 468 mm

Item No: 18710 051

SRL 468, 20-50kg container

Length suction tube: 468
Pressure ratio: 50:1
Max. diameter (mm): 130
Max. air pressure (bar): 10
Min. air pressure (bar): 2
Recommended air pressure (bar): 8
Cylinder capacity engine cm³: 220
Cylinder capacity pump cm³: 8
Quantity of strokes at 8 bar at a
Free-flow (min.): 220
Pump capacity at 8 bar at a
Free-flow (g/min): 1100
Pump pressure at 8 bar air
Pressure (bar): 400
Air consumption at 8 bar air
Pressure (l/min): 400
Length of discharge pipe work: Depends on size of installation.
Max. suction heigth: The pump ist constructed to be operated directly at the
Point of suction compressed air connection: G 1/4″ female
Grease connection suction side (ø mm): 35
Grease connection, pressure side: G 1/4″ male
Noise level idle running acc. To ISO 9614-2 at a distance of 2 m (db A): 78
Noise level under load acc. to ISO 9614-2 at a distance of 2 m (db A): 77
Viscosity of discharged liquid: grease up to NLGI 2
Classical liquids to be discharged: lubricating greases
Time duration for 1 complete container draining: 50 kg of grease in 50 min.
Colour: blue Pantone 294 c
Length of engine (mm): 225
Weight engine (kg): 3,400
For 16-30-kg-container
Suction tube
Special pump mechanism
Pressure reducing valve (pre-set at 8 bar)
Male quick release adapter (20 062)
The pump is designed to be operated for the discharge of lubricating and multi
purpose greases NLGI 0 up to NLGI 2 out of original manufacturer’s container, i.e.
geases for recharging of centralised lubricating systems
Pump is easy to disassemble for cleaning matters

All Products 2 years warranty.
