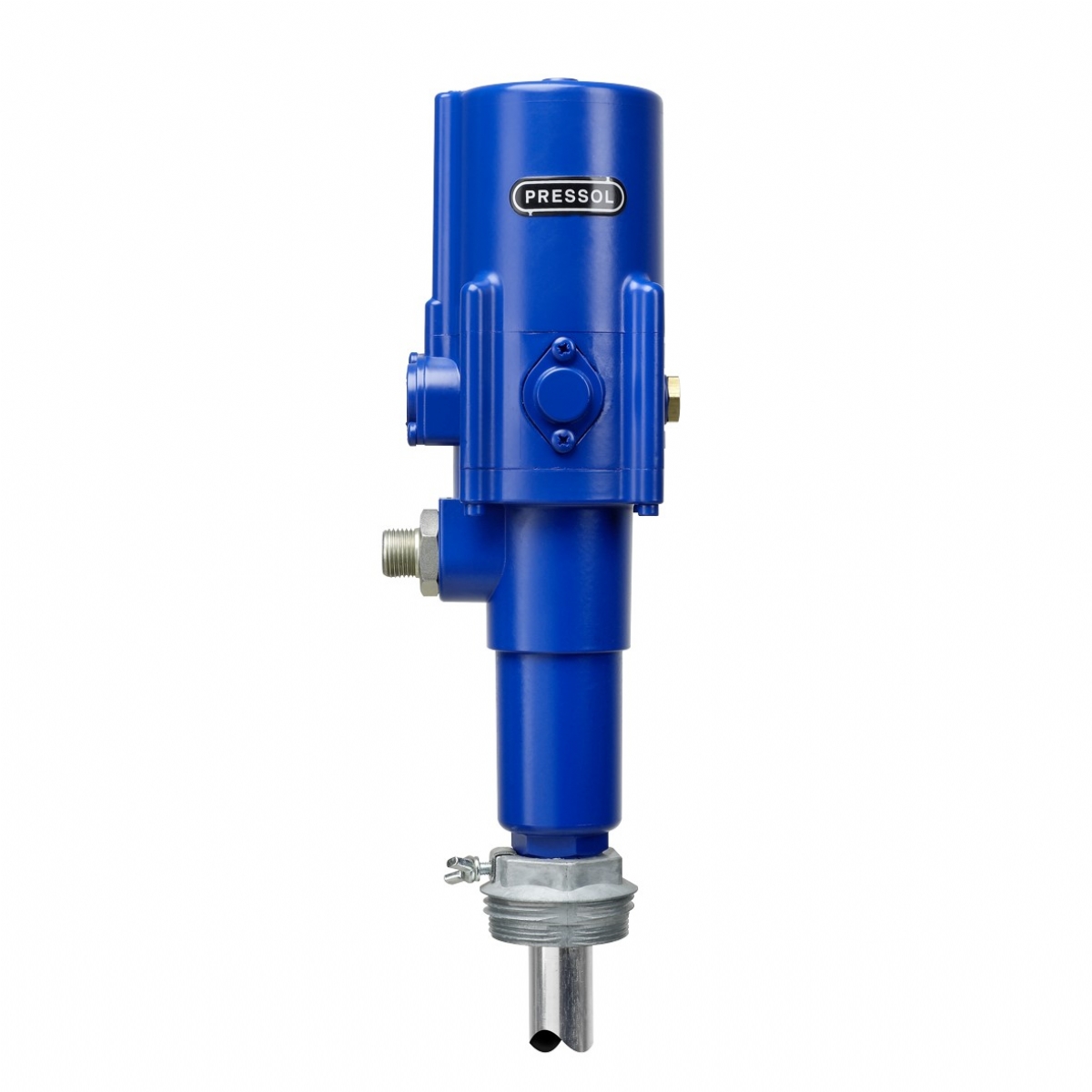

Pressol Pneumatic Pump 3:1 860 mm

Pressol Pneumatic Pump 3:1 860 mm

Item No: 19235

Operate pneumatic-pump with maintaining unit 20 218 950

SRL 860-200/220 l container
Technical Data

Length suction tube: 860
Pressure ratio: 3:1
Max. diameter (mm): 130
Max. air pressure (bar): 10
Min. air pressure (bar): 2
Recommended air pressure (bar): 8
Cylinder capacity engine cm³: 220
Cylinder capacity pump cm³: 70
Quantity of strokes at 8 bar at a
Free-flow (min.): 260
Pump capacity at 8 bar at a
Free-flow (l/min): 22
Pump pressure at 8 bar air
Pressure (bar): 24
Air consumption at 8 bar air
Pressure (l/min): 470
Length of discharge pipe work: Depends on size of installation.
Max. suction heigth: 6 m, suction tube G 3/4″
Compressed air connection: G 1/4″ female
Oil connection – suction side: G 3/4″ female
Oil connection – delivery side: G 1/2″ male
Connection container: G 2″ male, drum adapter
Noise level idle running acc. To ISO 9614-2 at a distance of 2 m (db A): 78
Noise level under load acc. to ISO 9614-2 at a distance of 2 m (db A): 77
Viscosity of discharged liquid: oil up to SAE 90
Classical liquids to be discharged: Engine, gear aud hydraulic oil
Time duration for 1 complete container draining: 200 l oil in 9 minutes
Colour: blue Pantone 294 c
Length of engine (mm): 360
Weight engine (kg): 3,800
specification

Pneumatic oil pump 3:1
Does not correspond to German calibration law (NEF).
Suction tube, G 3/4” male for 200/220 l container
To discharge engine, gear and hydraulic oils
Ideal for direct connection to pipe lines up to 70 meters. We strongly
recommend the use of an overflow valve ((19 648), 16 bar, or (19 506), 20 bar)
Can be easily combined with several hose reels

All Products 2 years warranty.
