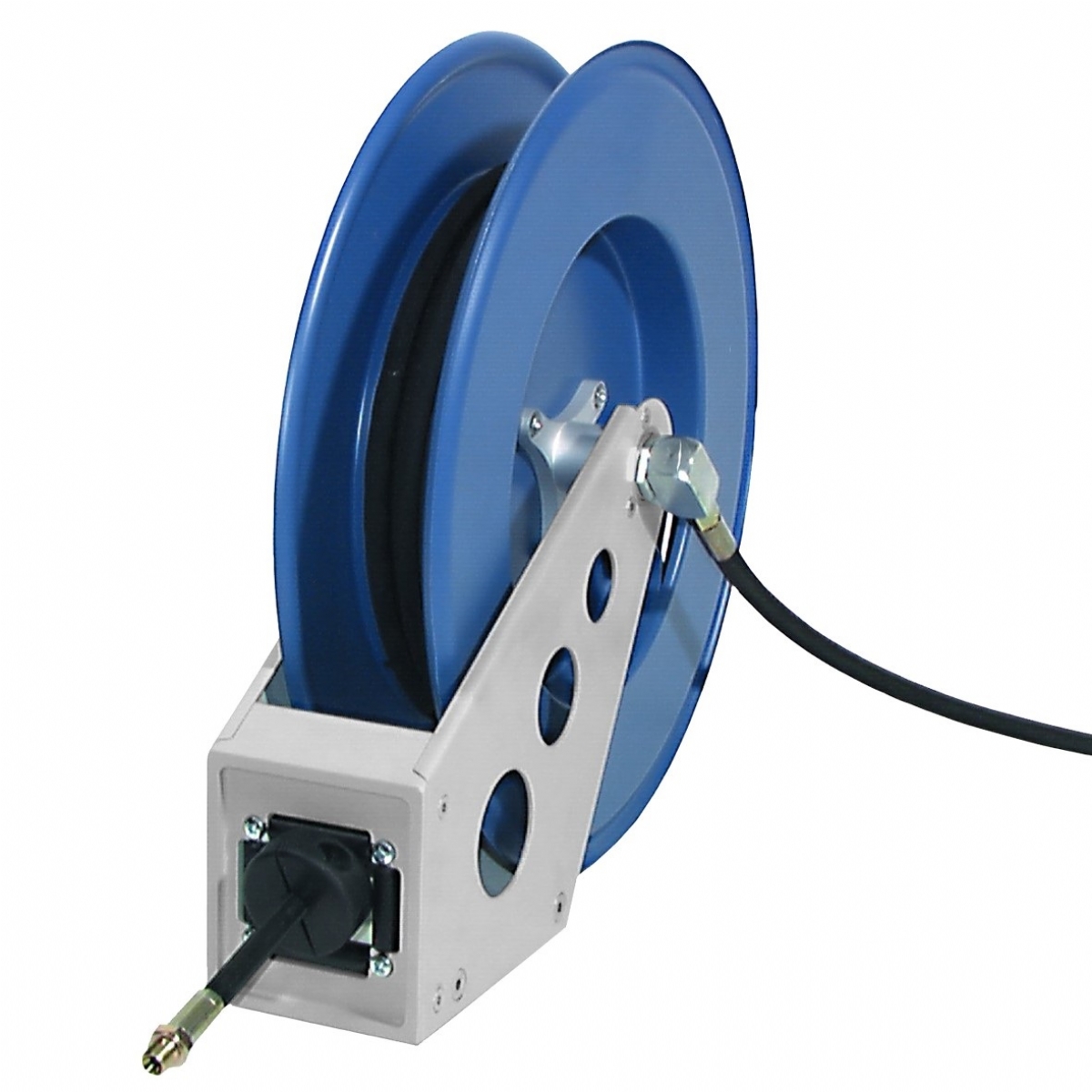

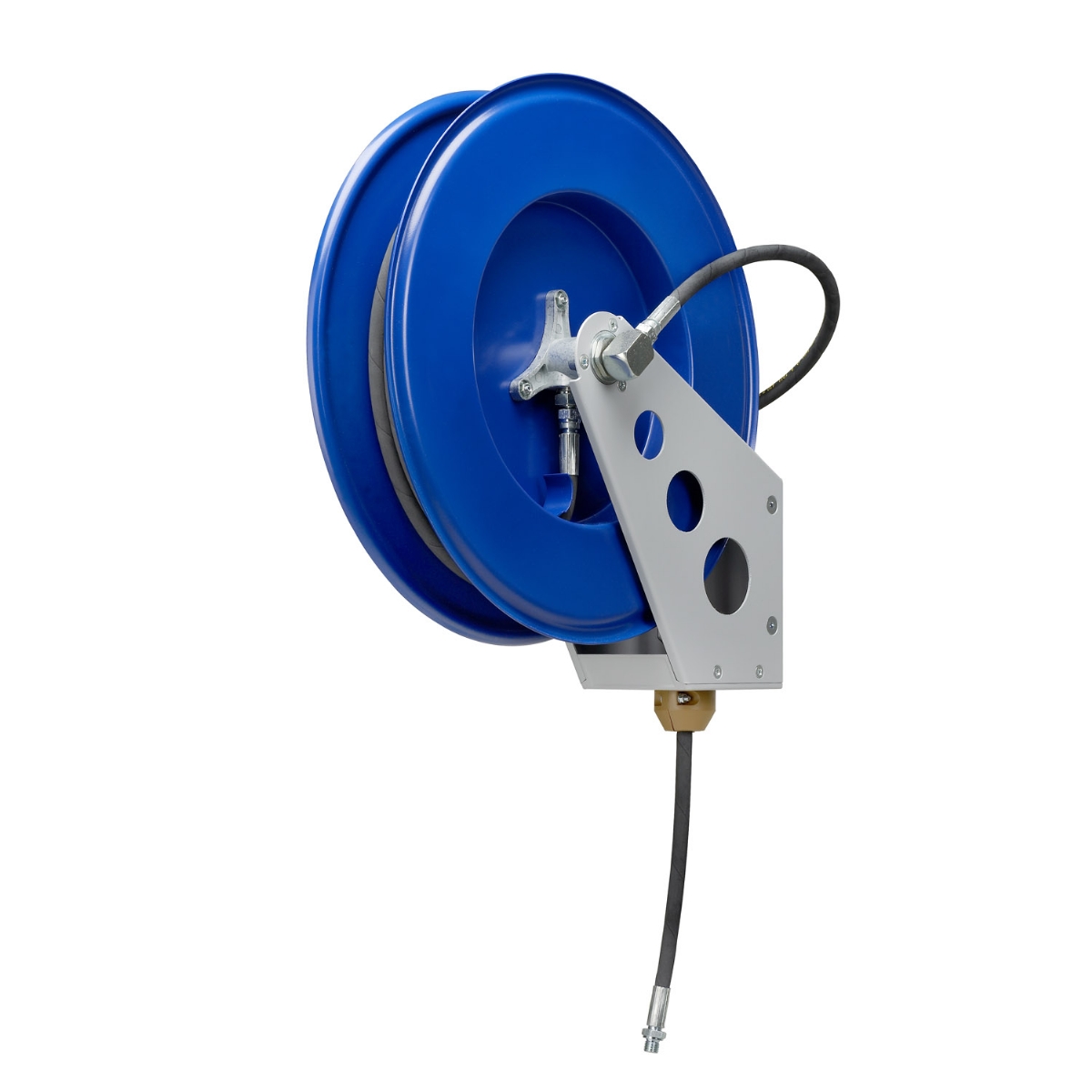

Pressol Open Hose Reel-For Grease 10 mt

Pressol Open Hose Reel-For Grease 10 mt

Item No: 29242

Pressol hose reels are exceedingly robust and are notable for their compact design.
All metal parts are phosphatized, undercoated and painted.
The high quality surface treatment of all steel parts ensures high corrosion resistance
Axis (Ø 40 mm) of die cast parts. Dimensions selected by our engineers ensure almost unlimited life range
The material combination axis / bearing and the spring unit are maintenance-free
Easy assembly because the weight of the hose reel does not need to be supported while mounting.
All swivel joints are ball bearing based
High pressure in the supply system does not influence the power needed to rotate the drum.
The hose can be engaged by rotating 1/4 turn.
Packaging
Dimensions LxWxH (mm): 540 x 580 x 160

Pressol Open Hose reel-for grease (29242 )
O-WB-400 bar-DN 6-10 m
Technical data
Length of discharge hose (m): 10
Connection discharge hose: G 1/4″ male/female
Length of connecting hose (m): 1
Connection to connecting hose: G 1/4″ female/female
Inner diameter of hose (DN): 6
Operating pressure max. (bar): 400
Lacquering Arm: window grey, satin, RAL 7040
Supporting plate: window grey, satin, RAL 7040
Encasing: Pantone 294c, blue satin
Dimensions LxWxH (mm): 472 x 152 x 498
Weight (kg): 16,800

Specification
open, for wall/floor mounting
With hose stop

All Products 2 years warranty.
