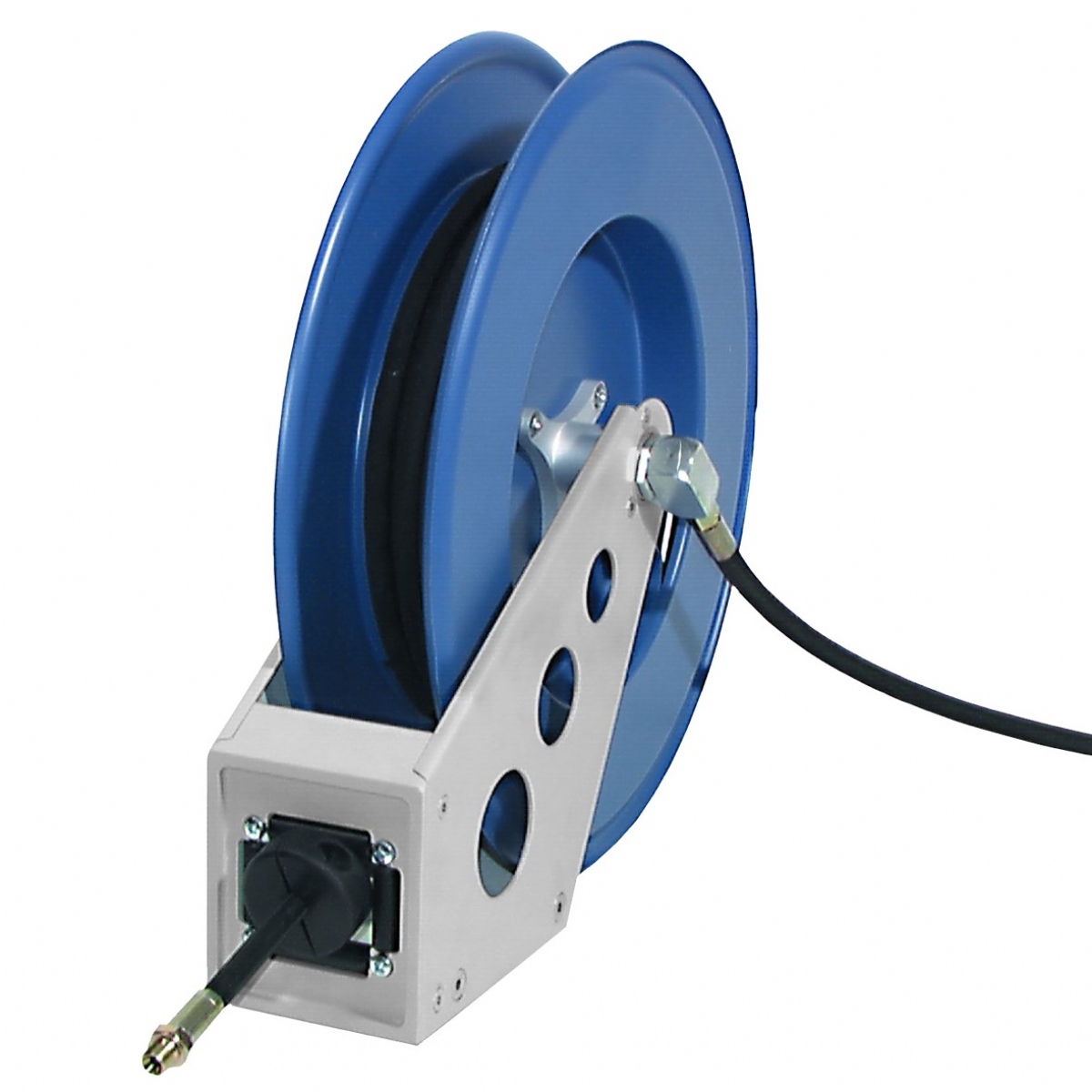

Pressol Open Hose Reel-For Oil 10 mt

Pressol Open Hose Reel-For Oil 10 mt

Pressol Open Hose Reel-For Oil 10 mt

Item No: 29142

Pressol hose reels are exceedingly robust and are notable for their compact design.
All metal parts are phosphatized, undercoated and painted.
The high quality surface treatment of all steel parts ensures high corrosion resistance
Axis (Ø 40 mm) of die cast parts. Dimensions selected by our engineers ensure almost unlimited
life range
The material combination axis / bearing and the spring unit are maintenance-free

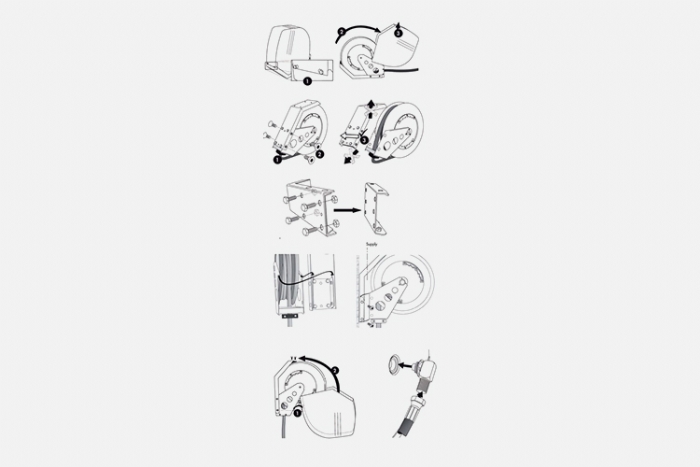

Easy assembly because the weight of the hose reel does not need to be supported while
All swivel joints are ball bearing based
High pressure in the supply system does not influence the power needed to rotate the drum.
The hose can be engaged by rotating 1/4 turn.
Dimensions LxWxH (mm): 540 x 580 x 160

Pressol Open Hose reel-for oil (29142 )

O-WB-120 bar-DN 12-10 m
Technical data
Length of discharge hose (m): 10
Connection discharge hose: G 1/2″ male/female
Length of connecting hose (m): 1
Connection to connecting hose: G 1/2″ i/i
Inner diameter of hose (DN): 12
Operating pressure max. (bar): 120
Lacquering Arm: window grey, satin, RAL 7040
Supporting plate: window grey, satin, RAL 7040
Encasing: Pantone 294c, blue satin

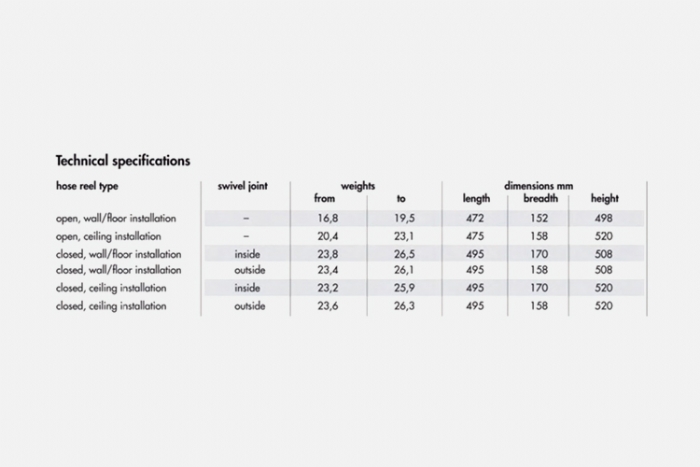

Dimensions LxWxH (mm): 472 x 152 x 498
Weight (kg): 16,6

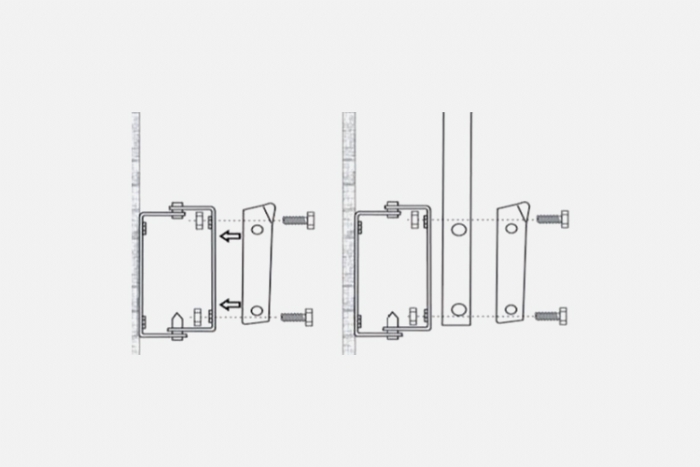

open, for wall/floor mounting
With hose stop

All Products 2 years warranty.
