Item No: 23431

FMT 230 Volt AC Diesel Transfer Pump 80 lt / min

Technical data

Connecting cable, length (m): 2

Connection suction side: G 1'' female

Connection discharge side: G 1'' female

Hydraulic data

Pump design: vane pump, selfpriming

Delivery rate under free discharge (l/min): 80

Discharge pressure up to (bar): 1,9

Suction height (m): 3

Pumping media: fuel oil and diesel

Bypass mode max. (min): 2

Trockenlauf maximal (min): 2

Motor data

Insulation class: F

Highest permissible limit temperature (°C): 155

Voltage (V): 230

Frequency (Hz): 50

Power consumption (A): 4

Power (kW): 0,6

Thermal protection: self resetting

Duty cycle (min): Continuous operation – a real endurance runner

Torque (Nm): 2

Rotation speed (rpm): 2800

Type of construction: IMB 3

Safety class: IP66

Materials of parts in contact with liquid

Seals: FKM (Viton®)/NBR

Pump housing: AlSi 12 (sea water resistant)

Rotor: GG 25

Vane: POM

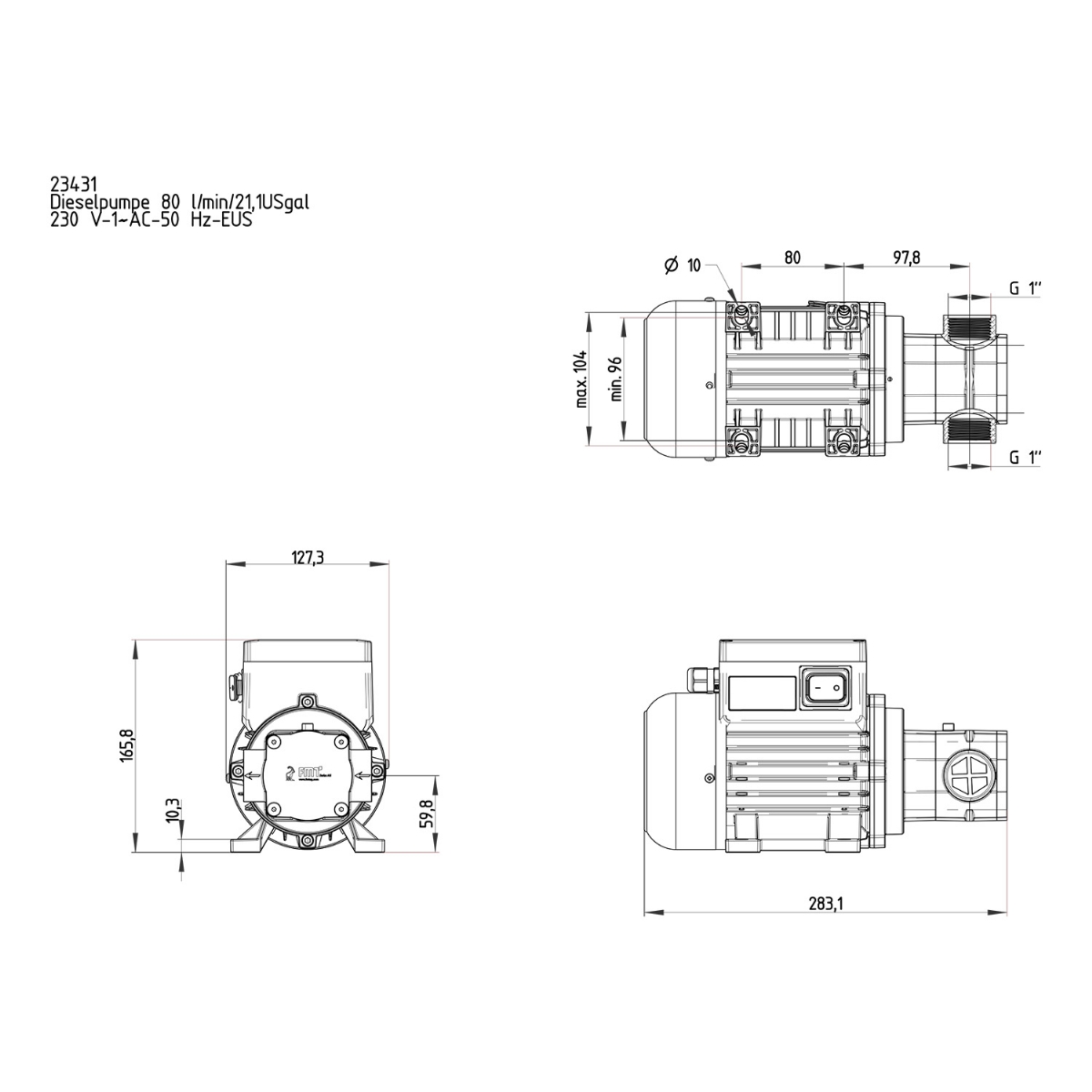

Dimensions LxWxH (mm): 280 x 115 x 170

Weight (kg): 6,4

Specification

● Vane pump, with integral bypass

● On/Off switch

● Siphon protection acc. to WHG (German government regulation for environmental care), continuously active

● Installation of flowmeter NUMERIxx³, three digits, is possible (23 192)

Special notes

● First class construction of electric machines and pumps

● Designed for a long service life

● Encapsulation of the electric motor, which, in case of extreme temperature

fluctuations, largely prevents the formation of condensed water and of short-circuits resulting thereof

● Motor and switch case made of shock resistant, die-cast aluminium

● Continuous operation – a real endurance runner

● Suction hight 3 m

● Small tolerances provide a high suction- and pressure performance

● Pump case freely positionable in all 90° positions
