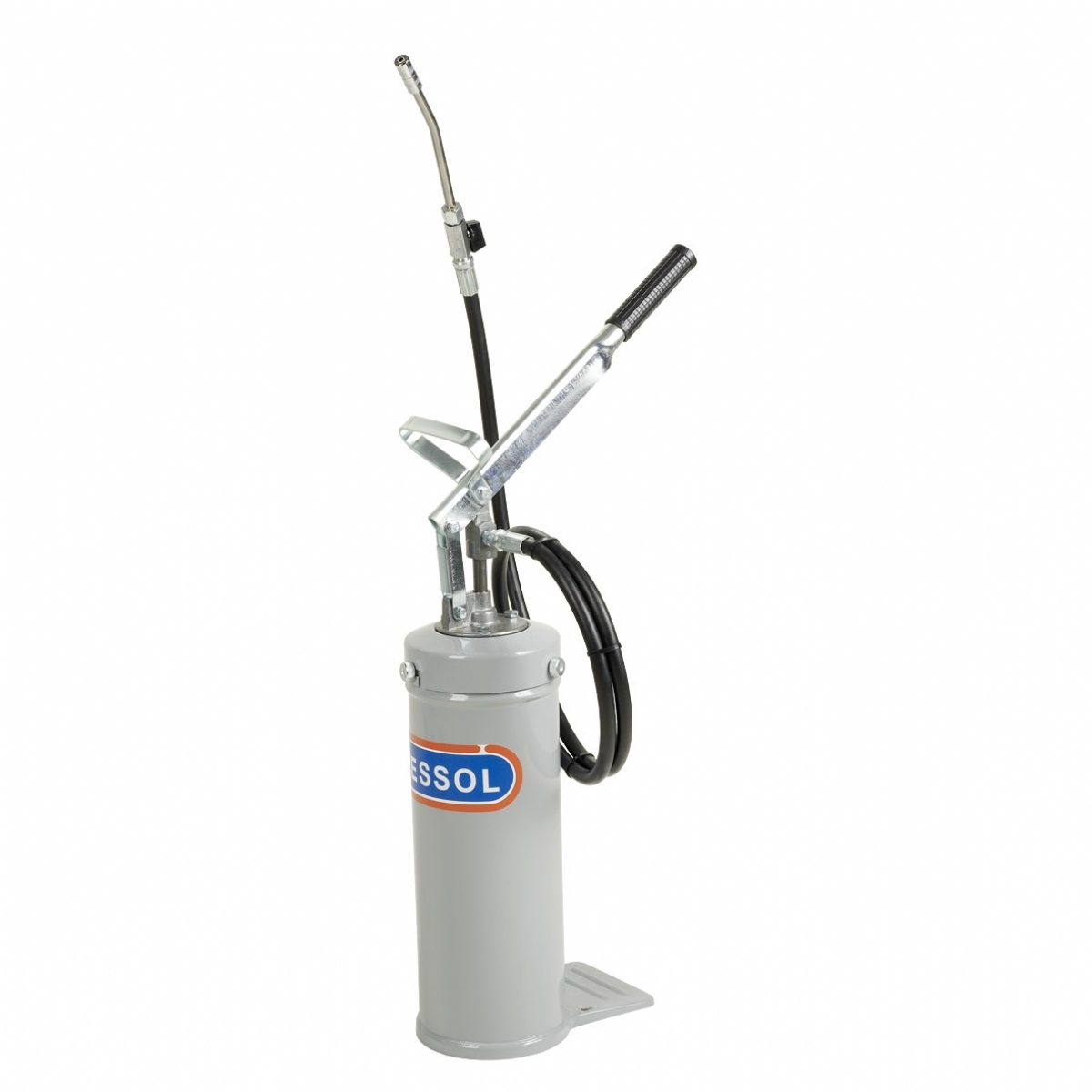

Grease Dispenser Unit, Portable 8 Kg.

Grease Dispenser Unit, Portable 8 Kg.

Item No: 17786

Technical data

Pumping media: lubricating greases, up to NLGI 2
Delivery rate/stroke (cm3): 10 ml
Discharge pressure (bar): 25
Grease supply: utilizing a hand pump
Capacity of container (kg): 8
Container diameter: 145
Container height: 380
Filling: manual, utilizing a removable pump
Discharge hose: high pressure hose, 11 x 1500 mm
Surface treatment: all steel components are galvanized
Pump head: impact-resistant zinc die casting
Lacquering of container and cover: RAL 7040 window-grey satin
Dimensions LxWxH (mm): 480 x 160 x 600
Weight (kg): 4,9

Specification

High pressure grease hose, 11 x 1500 mm
Spout, angled, M 10 x 1, 150 mm
4-claws hydraulic coupler, M 10 x 1
Shut-off valve
With foot rest
Lacquering, oil-resistant
Portable, with robust handle
Pump
Suction tube, with follow-up plate

All Products 2 years warranty.
