Item No: 14400 231

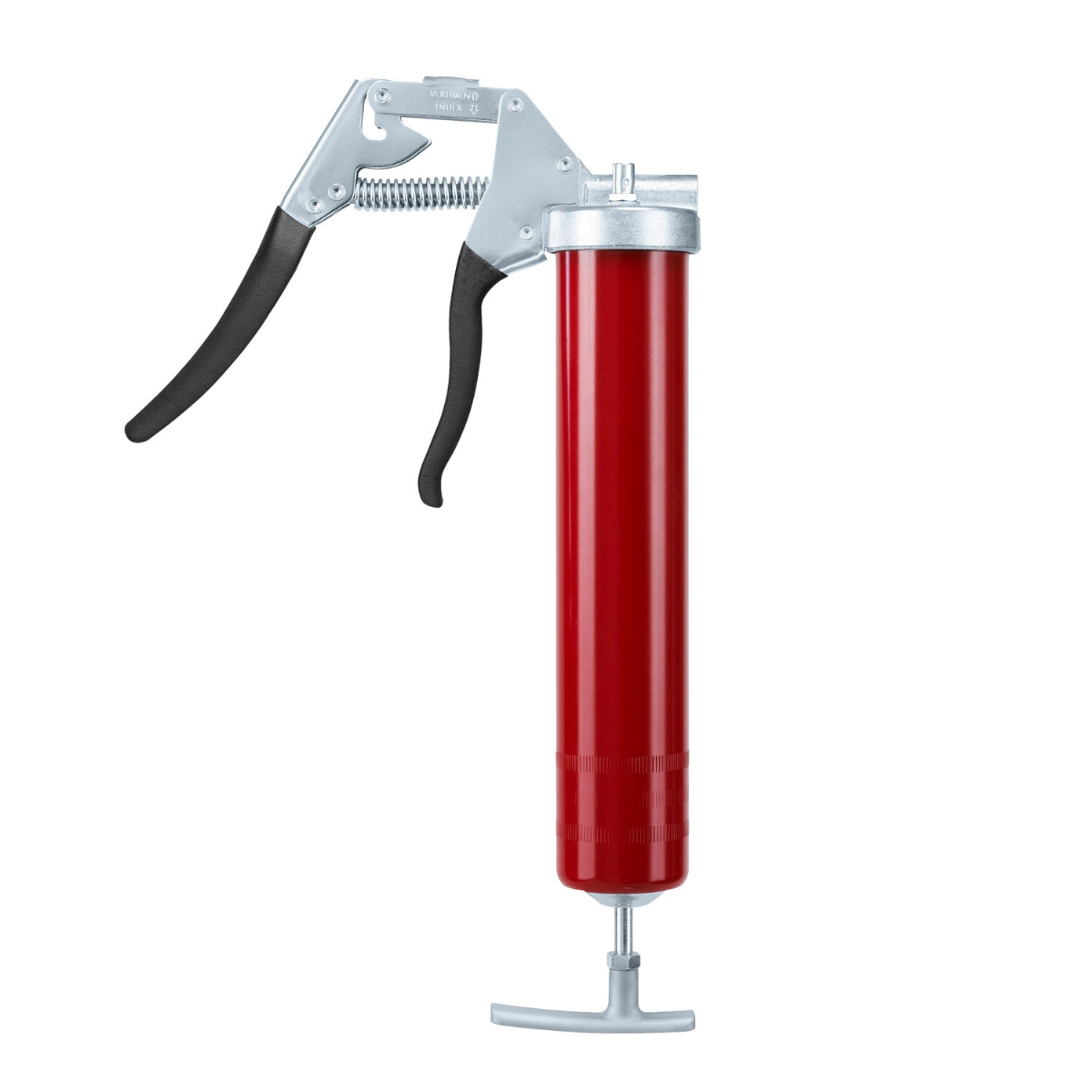

One hand grease gun 2014.1 M 10 x 1 Red

Technical data

Grease gun connection, pressure-side: M 10 x 1

Filling nipple: M 10 x 1

Capacity (cm³): 500

Refilling options: 400 g grease cartridge, DIN 1284, grease gun

filling system or bulk grease

Grease pump piston actuation: manual, by means of pressure grip

Calibration Volume

Delivery rate/stroke (cm³): 1,1

Calibration Pressure

Delivery rate/stroke (cm³): 0,7

Max. delivery pressure (bar): 300

Dimensions LxWxH (mm): 400 x 165 x 66

Weight (kg): 1,3


● Filling nipple (FN), M 10 x 1 male (12 670)

● Grease gun head, zinc die casting Z 410

● Dismantleable and movable push rod system

● T-grip, optimized grip and pressure optimized

● Ergonomic handle, non-slip, excellent power transfer and handling

● Packed in single carton box

● Galvanized parts: grease gun tube, grip, lever, pulling strap, safety catch, cap, push rod

Special notes

● The construction allows a single hand operated lubrication for an easy work in               restricted areas

● Can be switched with the hand grip from grease delivery with high volume to high       pressure

● Due to the flexibility of the push rod, the plunger can be inserted into damaged

   cartridges or cartridges not exactly matching the standard dimensions

● Damaged cartridges can easily be removed

● Push rod can be locked in any position - push rod does not have to be fully retracted

   to release the spring pressure on the grease (grease does not saponify)

● The ease of dismantling permits simple cleaning

● Rolled thread on the grease gun tube resists damage from impact and allows quick

   and easy screwing-in by 1,5 turns

● High-speed ventilation, by half a rotation of the grease gun tube

● Designed for use in rough conditions

● Similar to DIN 1283


Dimensions LxWxH (mm): 400 x 165 x 75

Weight including package (kg): 1,45

Packing unit: 1,0
