Grease Gun Filling Pump Manually Operated

Grease Gun Filling Pump Manually Operated

Item No: 17820

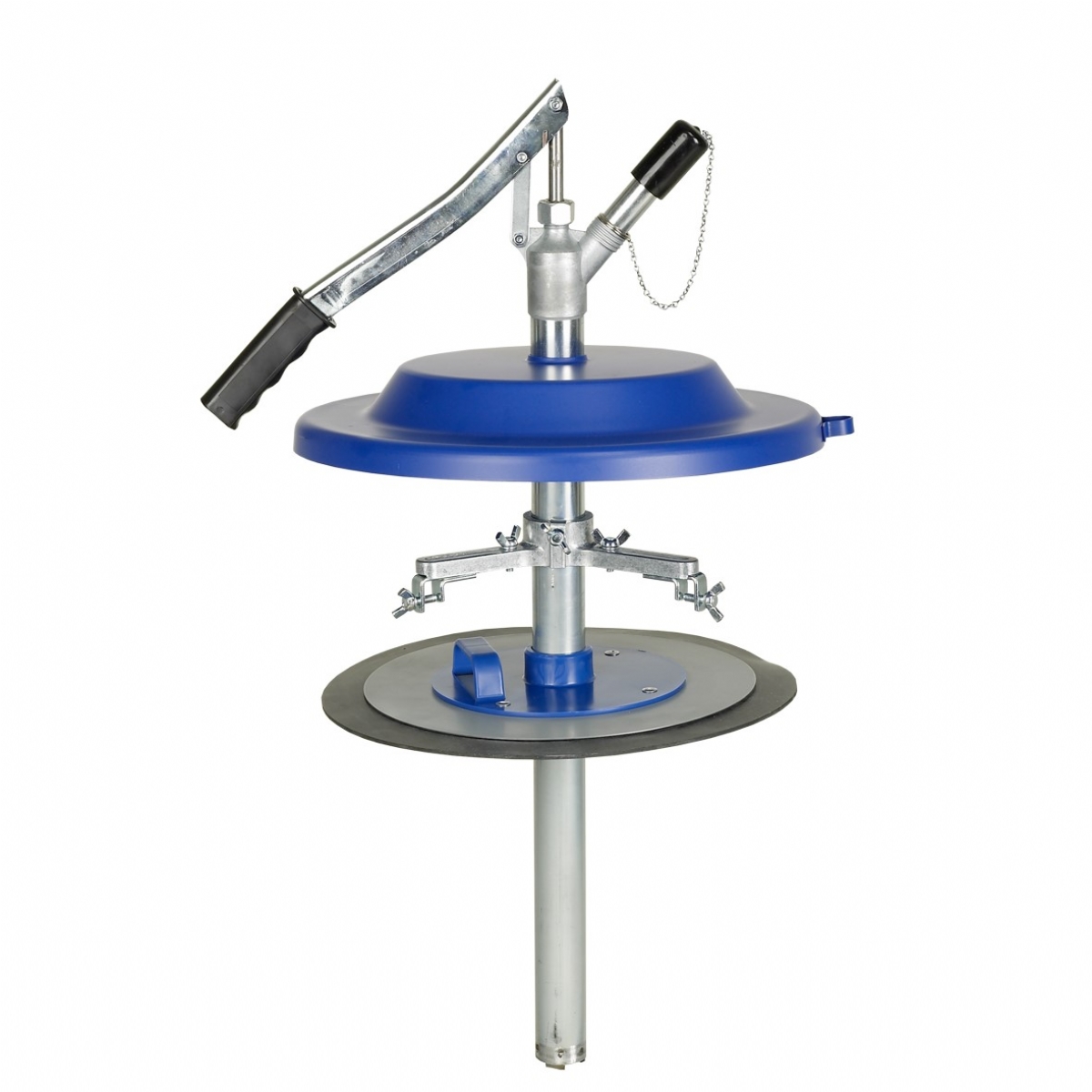

Grease gun filling system-manually operated

20-kg-BE-Ø 270-310 mm

Item number: 17 820

Technical data

Pumping media: lubricating greases, up to NLGI 2

Delivery rate/stroke (cm³): 30

Grease supply: by means of a hand pump

Follower plate: for 20 kg container

Ø follower plate (mm): 270 – 310

Length of suction tube (mm): 510 mm

Connection suction side: for grease guns, with filling nipple

Discharge pressure up to (bar): 8

Material pump body: steel

Material pump head: impact-resistant zinc die casting

Surface treatment: all steel components are galvanized

Lacquering dust cover: blue, Pantone 294 C

Application: for filling lever, one hand and air operated

grease guns

Specification

● Pump

● Suction tube

● Filling nipple, M 10 x 1 (12 670), enclosed without package, for upgrading grease

guns from other manufacturers

● Dust cover (17 176), stabilising-fixing bracket (17 197) and follower plate (17 300)

● Dust cap on filling coupler secured by chain

● Packed in single carton box

Special notes

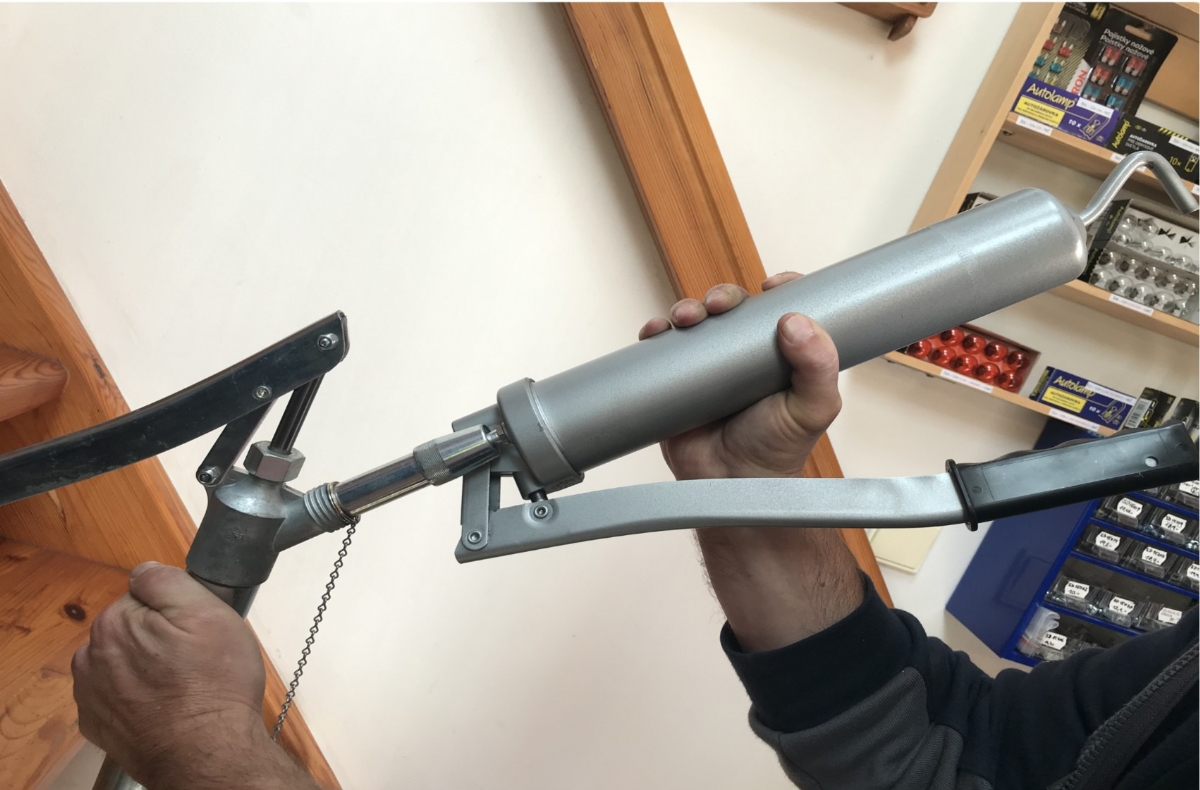

● for filling lever, one hand and air operated grease guns

Packaging

Dimensions packaging LxWxH (mm): 670 x 420 x 100

Weight including package (kg): 4,92

Packing unit: 1.0
