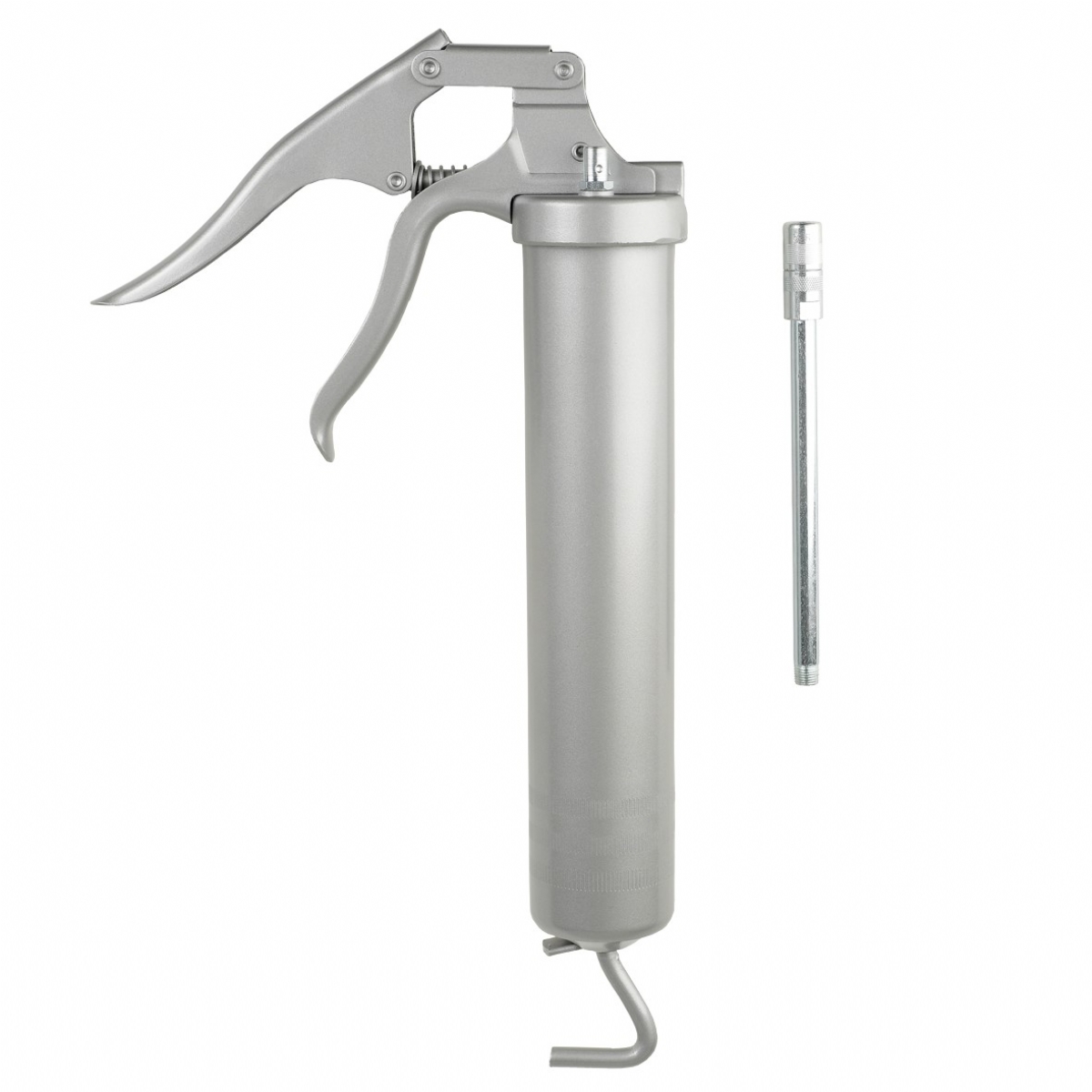

One Hand Operated Grease Gun-EHFP

One Hand Operated Grease Gun-EHFP

Item No: 12250

Operates with greases up to NLGI grade 2.
Contoured plunger, tight fitting, with bulk grease
Pump piston with high accuracy of fit to the cylinder (no dummy apparent lubrication)
Performance unchanged after 5000 actuating cycles
Separate filling and ventilation valves on grease gun head
Grease gun head, zinc die casting Z 410 safe handle on the plunger rod
Plunger rod clamp on end cap enables manual pressure to be applied to spring to compress bulk grease
High-speed ventilation, by half a rotation of the grease gun tube

125 cm³-M 10 x 1-GRDR-MU

Technical data

Grease gun connection, pressure-side: M 10 x 1
Filling nipple and ventilating valve: M 10 x 1
Capacity (cm³): 500
Refilling options: grease gun filling system or bulk grease
Diameter of grease piston (mm): 8
Grease pump piston actuation: manual, by means of pressure grip
Delivery rate/stroke (cm³): 0,4
Discharge pressure up to (bar): 550
Burst pressure system (bar): 850
Burst pressure grease gun head (bar): 1200
Operation of plunger rod: with L-design handle
Sealing cover: loose
Wall thickness of grease gun tube (mm): 1,0
Lacquering: silver

Specification

With 1 spout, straight, M 10 x 1, 150 mm
With 1 coupler, 4 jaws, M 10 x 1 (12 643)
Sales package, with Bar code
